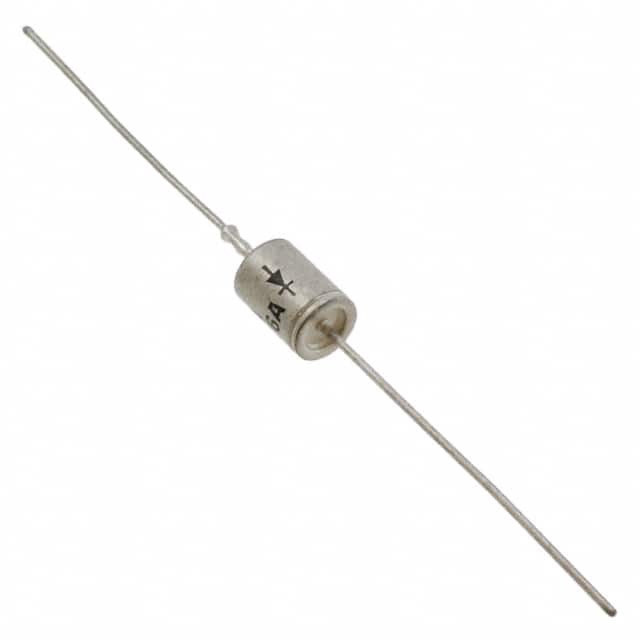

JAN1N5907

SKU: 37572

Manufacturer: Sensitron Semiconductor

TVS Diode Single Uni-Dir 5V 1.5KW 2-Pin DO-13

1430 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Supplier Unconfirmed
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
Automotive	No
PPAP	No
Configuration	Single
Direction Type	Uni-Directional
Number of Elements per pcs	1
Minimum Breakdown Voltage (V)	6
Maximum Clamping Voltage (V)	10
Maximum Reverse Stand-Off Voltage (V)	5
Maximum Peak Pulse Current (A)	1000
Maximum Reverse Leakage Current (uA)	300
Test Current (mA)	1
Peak Pulse Power Dissipation (W)	1500
Operating Temperature-Min	-55
Operating Temperature-Max	175
Supplier Temperature Grade	Military
Original Package	DO-13
Pin Count	2
Diameter	5.97(Max)
Terminal Form	Through Hole
Package Length	9.07(Max)
