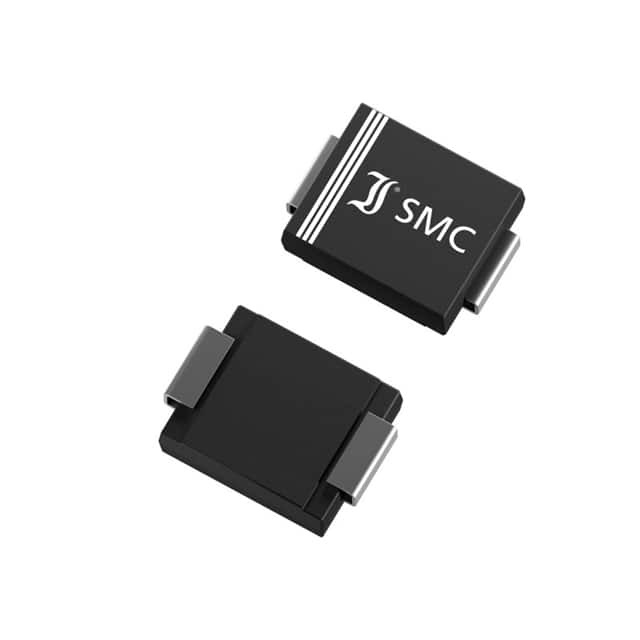

3.0SMCJ5.0A

SKU: 52737

Manufacturer: Sensitron Semiconductor

TVS Diode Single Uni-Dir 5V 3KW 2-Pin SMC

2620 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Configuration	Single
Direction Type	Uni-Directional
Number of Elements per pcs	1
Minimum Breakdown Voltage (V)	6.4
Maximum Clamping Voltage (V)	9.2
Maximum Reverse Stand-Off Voltage (V)	5
Maximum Peak Pulse Current (A)	326
Maximum Reverse Leakage Current (uA)	1000
Test Current (mA)	10
Peak Pulse Power Dissipation (W)	3000
Operating Temperature-Min	-55
Operating Temperature-Max	150
Original Package	SMC
Pin Count	2
Standard Package Method	DO-214-AB
Terminal Form	Surface Mount
Package Height	2.41(Max)
Package Length	7.11(Max)
Package Width	6.22(Max)
PCB changed	2
