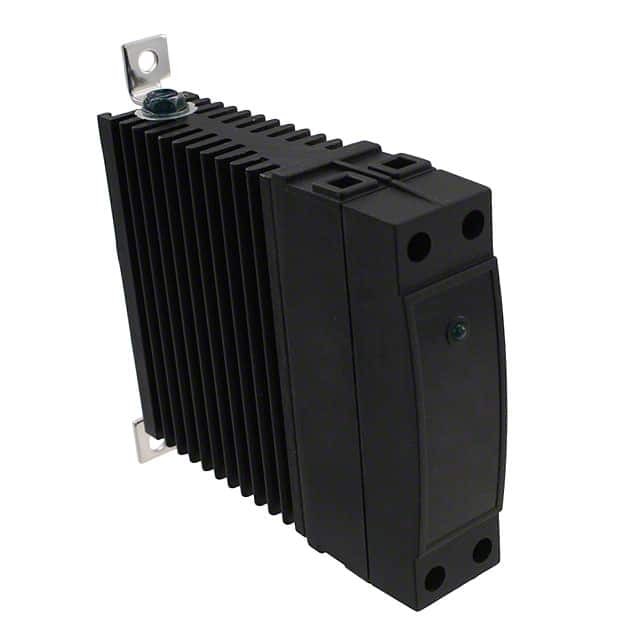

CKRD4830

SKU: 74888

Manufacturer: Sensata Technologies

Solid State Relay 12mA 32V DC-IN 30A 530V AC-OUT 4-Pin

1760 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8536.49.00.80
Automotive	No
PPAP	No
Input Type	DC
Minimum Input Voltage (V)	4
Maximum Input Voltage (V)	32
Maximum Input Current (mA)	12(Typ)
Maximum Output Voltage (V)	530(RMS)
Maximum Output Current (A)	30(RMS)
Output Device	SCR
Output Type	AC
Minimum Load Current (mA)	150
I/O Isolation Voltage (V)	4000(RMS)
Maximum Off-State Leakage Current (uA)	10000
Typical Input to Output Capacitance (pF)	8
Maximum Turn-On Time (ms)	8.33
Maximum Turn-Off Time (ms)	8.33
Circuit Arrangement	1 Form A
Operating Temperature-Min	-40
Operating Temperature-Max	80
Pin Count	4
Terminal Form	DIN Rail
Package Height	99
Package Length	81.9
Package Width	22.5
