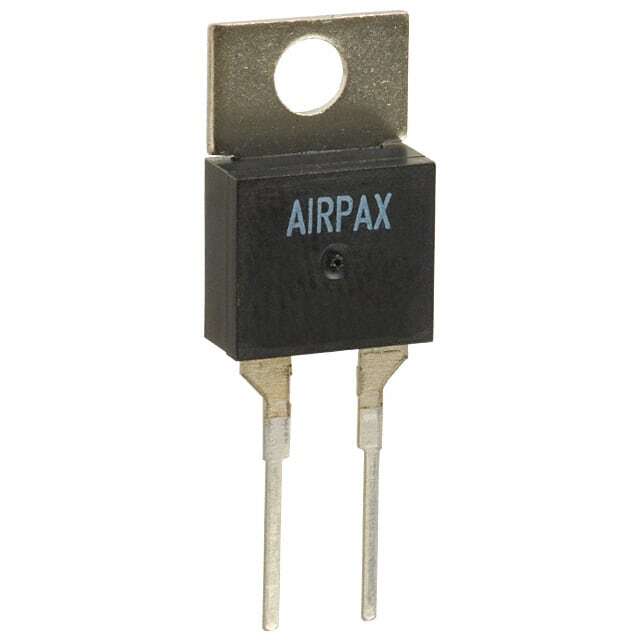

67F115

SKU: 52828

Manufacturer: Sensata Technologies

Bimetal Disc Thermostat Close on Rise Automotive 2-Pin(2+Tab) TO-220

720 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	Unknown
PPAP	Unknown
Manufacture Type	Bimetal Disc Thermostat
Set Point Function	Close on Rise
Set Point Type	Fixed
Switch Configuration	N.O.
Pole Throw Configuration	SPST
Contact Body Material	Gold Plated Silver
Dielectric Strength	1480VAC
Minimum Insulation Resistance (MOhm)	100
Maximum Contact Resistance (mOhm)	50
Operating Temperature-Min	40
Operating Temperature-Max	130
Differential Celsius (°C)	6(Min)
Current Rating-Max(A)	0.5
Electrical Life (Cycles)	100000
Close Temperature (Celsius) (°C)	115
Open Temperature (Celsius) (°C)	80
Original Package	TO-220
Pin Count	2
Standard Package Method	TO-220
Terminal Form	Through Hole
Package Height	8.89
Package Length	10.16
Package Width	4.7
PCB changed	2
