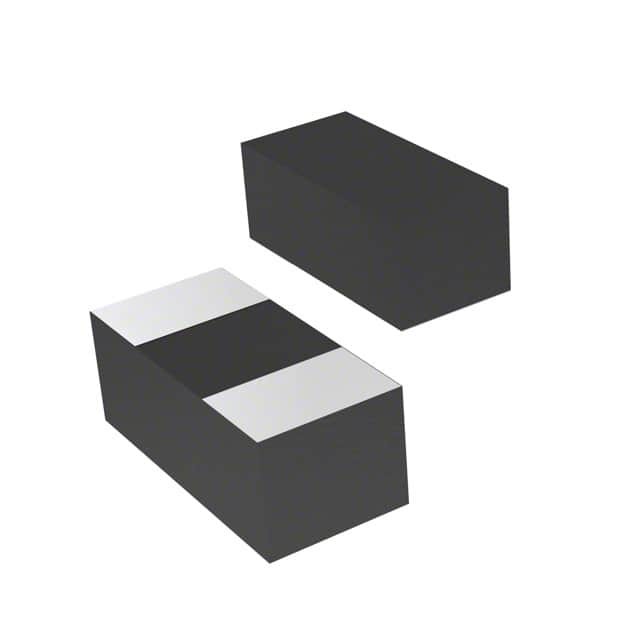

UCLAMP3381P.TFT

SKU: 57963

Manufacturer: Semtech

ESD Suppressor Diode TVS Bi-Dir 3.3V 2-Pin SGP T/R

2170 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.50
Automotive	No
PPAP	No
Type	TVS
Configuration	Single
Direction Type	Bi-Directional
Number of Elements per pcs	1
Maximum Working Voltage (V)	3.3
Minimum Breakdown Voltage (V)	4.5
Maximum Breakdown Voltage (V)	10
Maximum Clamping Voltage (V)	11.5
Maximum Peak Pulse Current (A)	25
Maximum Leakage Current (uA)	0.1
Test Current (mA)	1
Peak Pulse Power Dissipation (W)	275
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	SGP
Pin Count	2
Terminal Form	Surface Mount
Package Height	0.47
Package Length	1
Package Width	0.6
