UCLAMP0502T.TCT

SKU: 71959

Manufacturer: Semtech

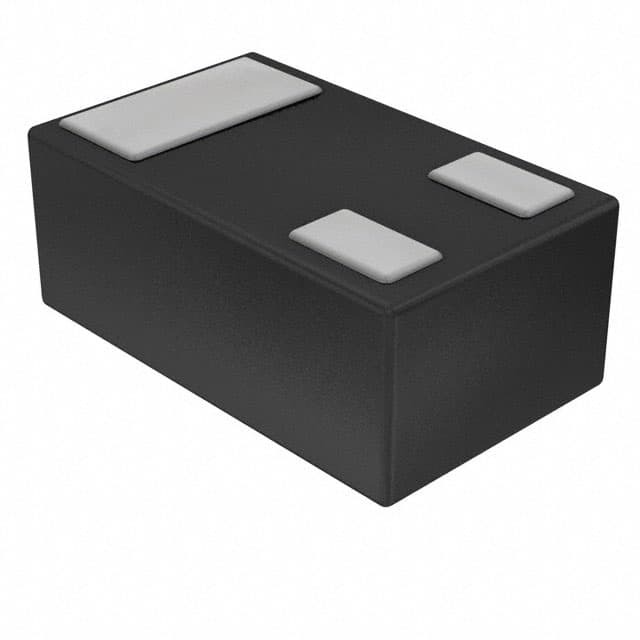

ESD Suppressor Diode TVS Uni-Dir 5V 3-Pin SLP T/R

3010 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.50
Automotive	No
PPAP	No
Type	TVS
Configuration	Dual Common Anode
Direction Type	Uni-Directional
Number of Elements per pcs	2
Maximum Working Voltage (V)	5
Maximum Clamping Voltage (V)	12.5
Maximum Leakage Current (uA)	0.25
Peak Pulse Power Dissipation (W)	25
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	SLP
Pin Count	3
Terminal Form	Surface Mount
Package Height	0.37
Package Length	1
Package Width	0.6
