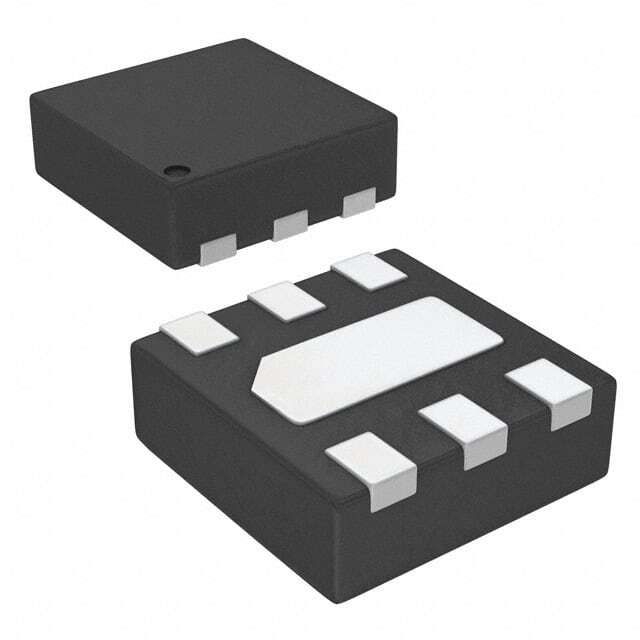

RCLAMP1654P.TCT

SKU: 49591

Manufacturer: Semtech

ESD Suppressor Diode TVS Uni-Dir 5.5V 6-Pin SLP EP T/R

80940 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.50
Automotive	No
PPAP	No
Type	TVS
Configuration	Dual
Direction Type	Uni-Directional
Number of Elements per pcs	2
Maximum Working Voltage (V)	5.5
Minimum Breakdown Voltage (V)	6.5
Maximum Clamping Voltage (V)	30
Maximum Peak Pulse Current (A)	3
Maximum Leakage Current (uA)	1
Test Current (mA)	1
Peak Pulse Power Dissipation (W)	200
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	SLP EP
Pin Count	6
Terminal Form	Surface Mount
Package Height	0.55
Package Length	1.6
Package Width	1.6
