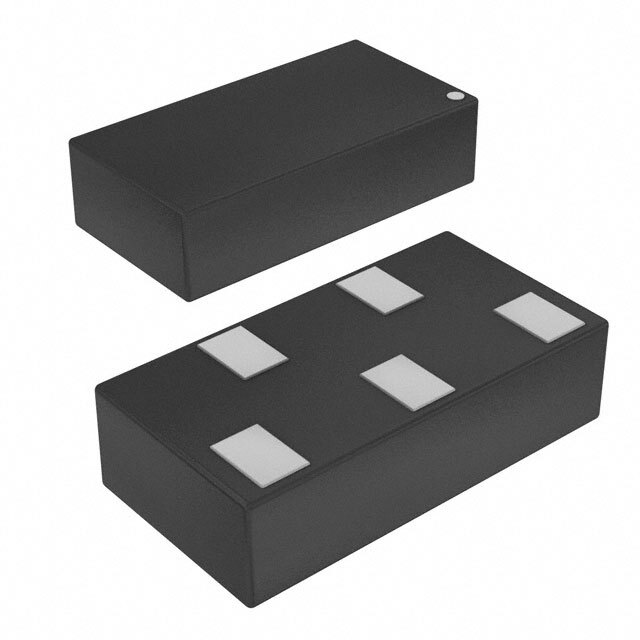

RCLAMP0564P.TNT Semtech

RCLAMP0564P.TNT

SKU: 28278

Manufacturer: Semtech

ESD Suppressor Diode Diode Array Uni-Dir 5V 5-Pin SGP T/R

Download sample

Request Free Samples

53280 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.30.80.00
Automotive	No
PPAP	No
Type	Diode Array
Configuration	Quad
Direction Type	Uni-Directional
Number of Elements per pcs	4
Maximum Working Voltage (V)	5
Minimum Breakdown Voltage (V)	6.5
Maximum Breakdown Voltage (V)	10.5
Maximum Clamping Voltage (V)	13.5(Typ)
Maximum Peak Pulse Current (A)	3
Maximum Leakage Current (uA)	0.05
Test Current (mA)	10
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	SGP
Pin Count	5
Terminal Form	Surface Mount
Package Height	0.48
Package Length	2
Package Width	1
