RCLAMP0531T.TCT

SKU: 14094

Manufacturer: Semtech

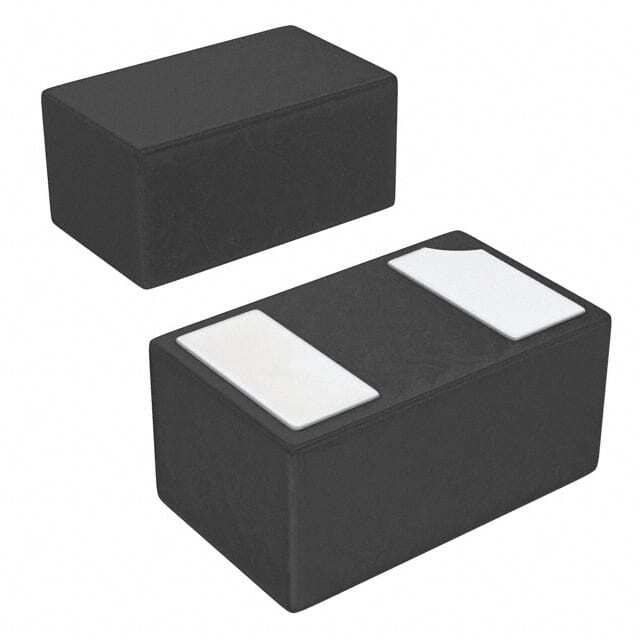

ESD Suppressor Diode TVS Bi-Dir 5V 2-Pin SLP T/R

77020 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	TVS
Configuration	Single
Direction Type	Bi-Directional
Number of Elements per pcs	1
Maximum Working Voltage (V)	5
Minimum Breakdown Voltage (V)	6
Maximum Breakdown Voltage (V)	11
Maximum Clamping Voltage (V)	20
Maximum Peak Pulse Current (A)	4
Maximum Leakage Current (uA)	0.1
Test Current (mA)	1
Peak Pulse Power Dissipation (W)	80
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tape and Reel
Fail Safe Protection	No
Pin Count	2
Standard Package Method	SLP
Original Package	SLP
Terminal Form	Surface Mount
Package Length	1
Package Width	0.6
PCB changed	2
