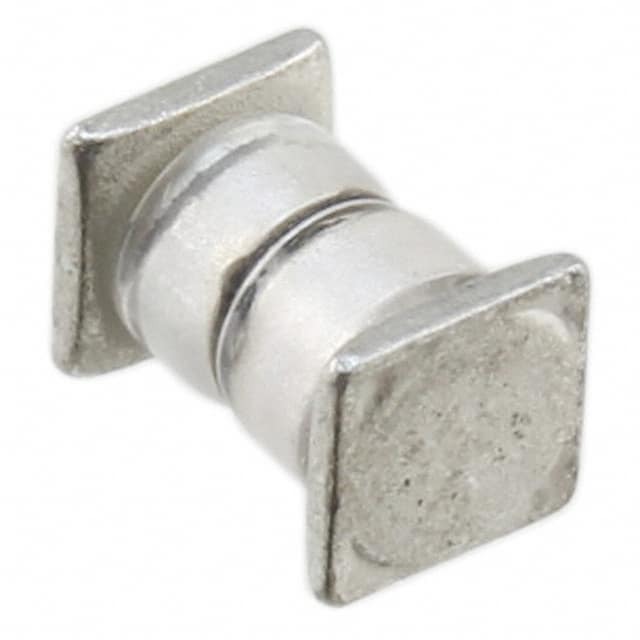

JANTX1N6463US

SKU: 65901

Manufacturer: Semtech

TVS Diode Single Uni-Dir 12V 500W 2-Pin SMD

2850 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Supplier Unconfirmed
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
Automotive	No
PPAP	No
Configuration	Single
Direction Type	Uni-Directional
Number of Elements per pcs	1
Minimum Breakdown Voltage (V)	13.6
Maximum Clamping Voltage (V)	22.6
Maximum Reverse Stand-Off Voltage (V)	12
Maximum Peak Pulse Current (A)	125
Maximum Reverse Leakage Current (uA)	500
Test Current (mA)	5
Peak Pulse Power Dissipation (W)	500
Operating Temperature-Min	-65
Operating Temperature-Max	175
Supplier Temperature Grade	Military
Original Package	SMD
Pin Count	2
Standard Package Method	SMD
Terminal Form	Surface Mount
Package Height	3.76(Max)
Package Length	5.72(Max)
Package Width	3.76(Max)
