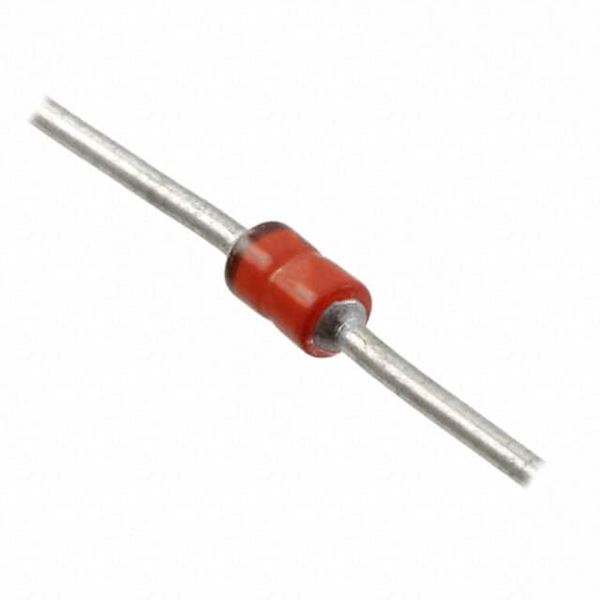

JAN1N4482

SKU: 37573

Manufacturer: Semtech

Zener Diode Single 51V 5% 60Ohm 1500mW 2-Pin Case G-99

3210 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Supplier Unconfirmed
ECCN (US)	EAR99
Part Status	Active
HTS	8504.40.95.70
Automotive	No
PPAP	No
Type	Voltage Regulator
Configuration	Single
Nominal Zener Voltage (V)	51
Zener Voltage Tolerance	5%
Maximum Voltage Regulation (mV)	2300
Maximum Power Dissipation (mW)	1500
Test Current (mA)	5
Maximum Reverse Leakage Current (uA)	0.05
Maximum Regulator Current (mA)	28
Maximum Zener Impedance (Ohm)	60
Maximum Power Dissipation @ 25C (mW)	1500
Operating Temperature-Min	-55
Operating Temperature-Max	175
Supplier Temperature Grade	Military
Typical Voltage Temperature Coefficient	0.096%/°C(Max)
Original Package	Case G-99
Pin Count	2
Standard Package Method	Case G99
Diameter	2.16(Max)
Terminal Form	Through Hole
Package Length	4.06(Max)
PCB changed	2
