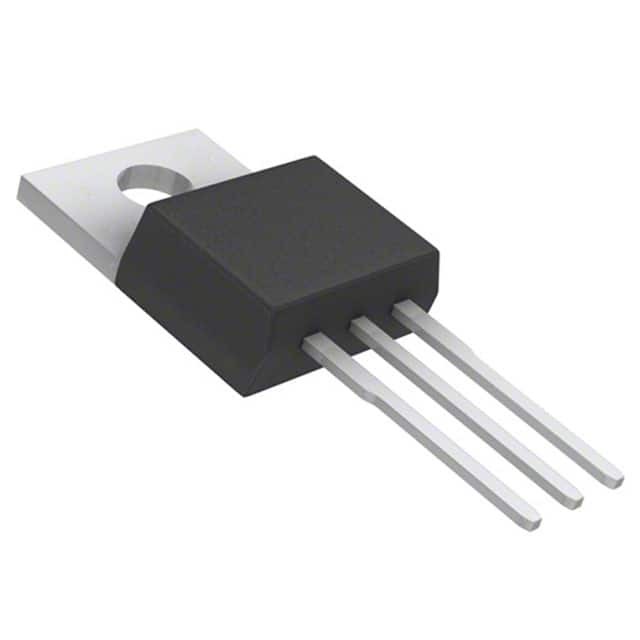

EZ1085CT-3.3

SKU: 124914

Manufacturer: Semtech

LDO Regulator Pos 3.3V 3A 3-Pin(3+Tab) TO-220 Tube

1460 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±2
Output Type	Fixed
Output Voltage (V)	3.3
Maximum Output Current (A)	3
Minimum Input Voltage (V)	2.75
Maximum Input Voltage (V)	7
Maximum Dropout Voltage @ Current (V)	1.35@3A
Reference Voltage (V)	1.267
Line Regulation	0.045%(Typ)
Load Regulation	0.15%(Typ)
Maximum Quiescent Current (mA)	14
Junction to Ambient	50°C/W
Junction to Case	3°C/W
Special Features	Thermal Shutdown Protection
Operating Temperature-Min	0
Operating Temperature-Max	70
Supplier Temperature Grade	Commercial
Packing Method	Tube
Original Package	TO-220
Pin Count	3
Standard Package Method	TO-220
Terminal Form	Through Hole
Package Height	9.02(Max)
Package Length	10.66(Max)
Package Width	4.82(Max)
PCB changed	3
