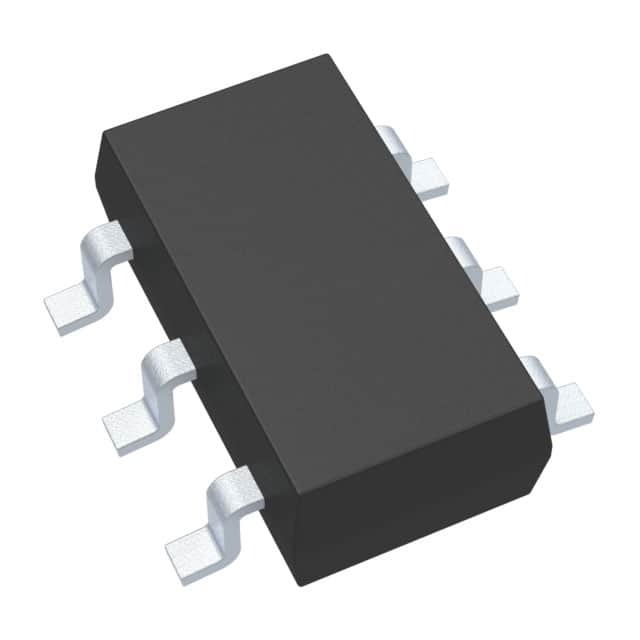

ECLAMP2122S.TCT

SKU: 68265

Manufacturer: Semtech

ESD Suppressor Diode TVS Uni-Dir 5.25V 6-Pin SOT-23 T/R

1870 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8548.90.01.00
Automotive	No
PPAP	No
Type	TVS
Configuration	Quint
Direction Type	Uni-Directional
Number of Elements per pcs	5
Maximum Working Voltage (V)	5.25
Minimum Breakdown Voltage (V)	6
Maximum Clamping Voltage (V)	11
Maximum Peak Pulse Current (A)	3
Maximum Leakage Current (uA)	5
Test Current (mA)	1
Maximum Power Dissipation (mW)	100
Capacitance Value (pF)	33
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	SOT-23
Pin Count	6
Terminal Form	Surface Mount
Package Height	1.15
Package Length	2.9
Package Width	1.6
