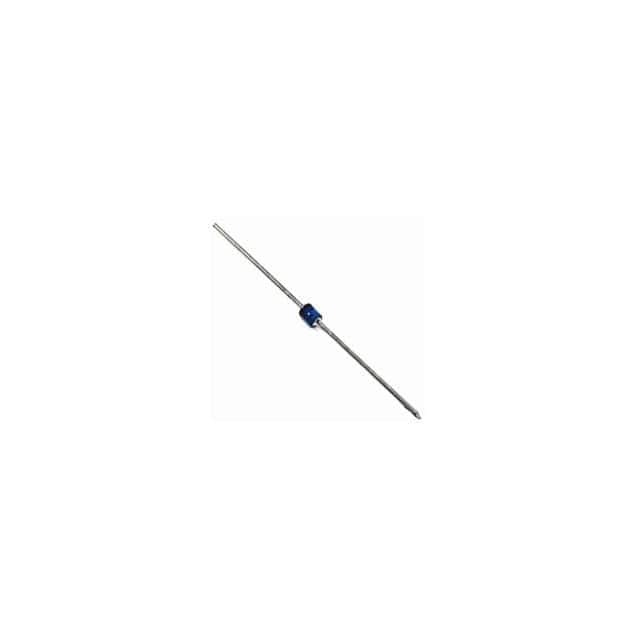

1N4967

SKU: 114601

Manufacturer: Semtech

Zener Diode Single 24V 5% 5Ohm 5000mW 2-Pin Case G-99

2610 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.50
Automotive	No
PPAP	No
Type	Voltage Regulator
Configuration	Single
Nominal Zener Voltage (V)	24
Zener Voltage Tolerance	5%
Maximum Voltage Regulation (mV)	2000
Maximum Power Dissipation (mW)	5000
Test Current (mA)	50
Maximum Reverse Leakage Current (uA)	2
Maximum Regulator Current (mA)	198
Maximum Zener Impedance (Ohm)	5
Maximum Power Dissipation @ 25C (mW)	5000
Operating Temperature-Min	-55
Operating Temperature-Max	175
Typical Voltage Temperature Coefficient	0.09%/°C(Max)
Original Package	Case G-99
Pin Count	2
Standard Package Method	Case G99
Diameter	3.56(Max)
Terminal Form	Through Hole
Package Length	4.7(Max)
