JANS2N3700

SKU: 143692

Manufacturer: Semicoa Semiconductors

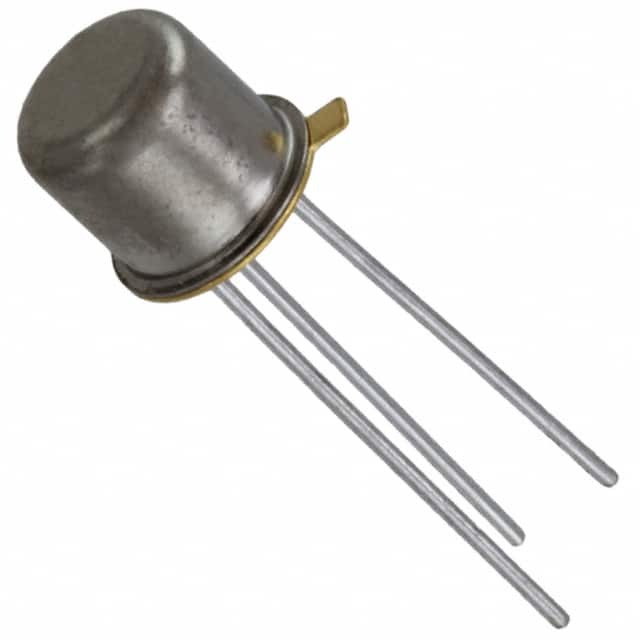

Trans GP BJT NPN 80V 1A 500mW 3-Pin TO-18

2240 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Unconfirmed
HTS	8533.10.00.57
Automotive	No
PPAP	No
Type	NPN
Product Category	Bipolar Power
Body Material	Si
Configuration	Single
Number of Elements per pcs	1
Collector Base Voltage-Max (V)	140
Collector-Emitter Voltage-Max (V)	80
Maximum Emitter Base Voltage (V)	7
Maximum Base Emitter Saturation Voltage (V)	1.27@15mA@150mA
Maximum Collector-Emitter Saturation Voltage (V)	0.23@15mA@150mA
Maximum DC Collector Current (A)	1
Maximum Collector Cut-Off Current (nA)	20000
Minimum DC Current Gain	50@150mA@150mA@10V
Maximum Power Dissipation (mW)	500
Operating Temperature-Min	-65
Operating Temperature-Max	200
Supplier Temperature Grade	Military
Original Package	TO-18
Pin Count	3
Diameter	5.84(Max)
Terminal Form	Through Hole
Package Height	5.33(Max)
PCB changed	3
