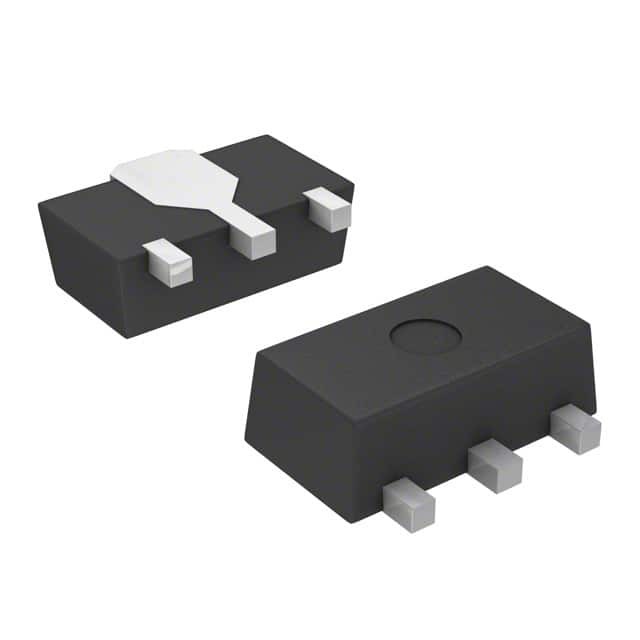

S-812C50AUA-C3ET2G

SKU: 134488

Manufacturer: Seiko Instruments Inc

LDO Regulator Pos 5V 0.075A 4-Pin(3+Tab) SOT-89 T/R

1370 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±2
Process Technology	CMOS
Output Type	Fixed
Output Voltage (V)	5
Maximum Output Current (A)	0.075(Min)
Maximum Input Voltage (V)	16
Maximum Dropout Voltage @ Current (V)	0.25@10mA
Line Regulation	20mV
Load Regulation	80mV
Maximum Power Dissipation (mW)	1000
Special Features	Short Circuit Protection
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	SOT-89
Pin Count	4
Standard Package Method	SOT
Terminal Form	Surface Mount
Package Height	1.5
Package Length	4.5
Package Width	2.5
PCB changed	3
Tab	Tab
