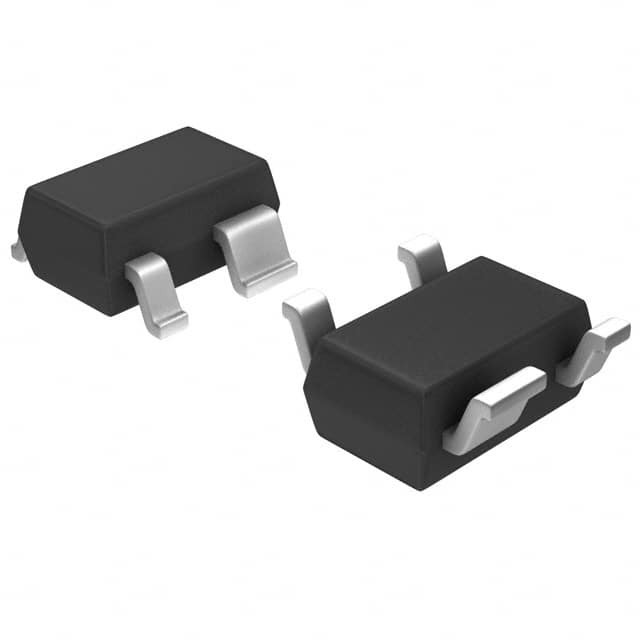

S-80834CNNB-B8T-T2G

SKU: 21165

Manufacturer: Seiko Instruments Inc

Processor Supervisor 3.4V 1 Active Low/Open Drain 4-Pin(3+Tab) SC-82AB

1760 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Number of Supervisors	1
Output Driver	Active Low/Open Drain
Minimum Reset Threshold Voltage (V)	3.332
Typical Reset Threshold Voltage (V)	3.4
Maximum Reset Threshold Voltage (V)	3.468
Monitored Voltage (V)	0.8 to 6
Operating Supply Voltage-Min (V)	0.95
Operating Supply Voltage-Max (V)	10
Maximum Power Dissipation (mW)	350
Power Fail Detection	Yes
Watchdog Timer	No
Manual Reset	No
Chip Enable Signals	No
Battery Backup Switching	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Type	Voltage Detector
Original Package	SC-82AB
Pin Count	4
Standard Package Method	SOT-343
Terminal Form	Surface Mount
Package Height	0.9
Package Length	2
Package Width	1.25
PCB changed	3
Tab	Tab
