PFSM.050.2

SKU: 35077

Manufacturer: Schurter

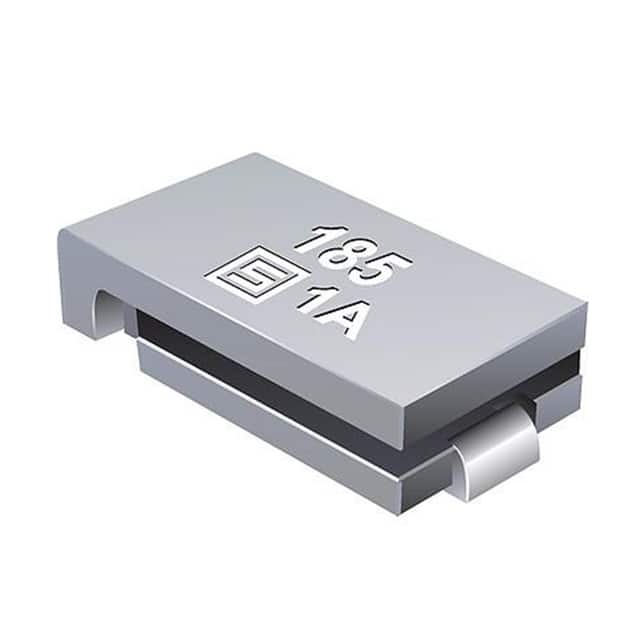

PTC Resettable Fuse 0.5A(hold) 1A(trip) 60VDC 40A 1.7W 4s 0.35Ohm SMD Solder Pad 7.98 X 5.44 X 3.18mm T/R Automotive

3180 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8533.40.80.70
Automotive	Yes
PPAP	Unknown
Voltage Rating-Max	60VDC
Current Rating-Max(A)	40
Hold Current (A)	0.5
Trip Current (A)	1
Minimum Initial Resistance (Ohm)	0.35
Maximum Post Trip Resistance (Ohm)	1.4
Typical Power Dissipation (W)	1.7
Maximum Trip Time (s)	4@2.5A
Terminal Form	Solder Pad
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Size (mm)	7.98 X 5.44 X 3.18
Length (mm)	7.98(Max)
Depth (mm)	5.44(Max)
Height (mm)	3.18(Max)
