3413.0223.22 Schurter

3413.0223.22

SKU: 80800

Manufacturer: Schurter

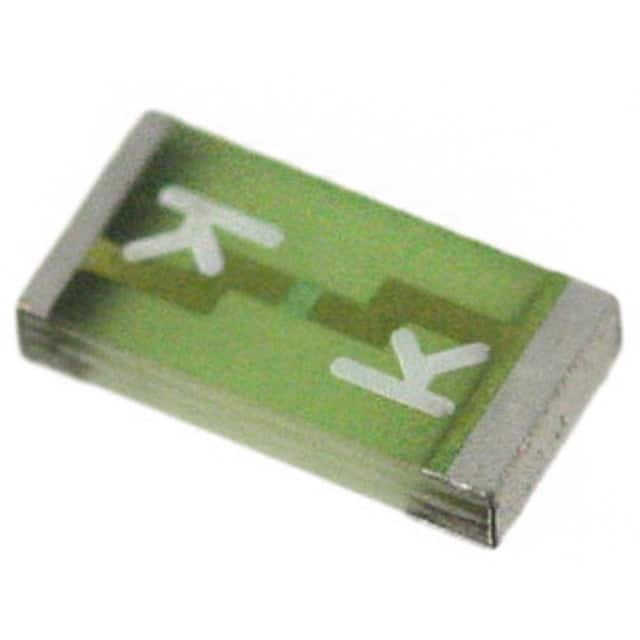

Fuse Chip Fast Acting 5A 32V SMD Solder Pad 1206 Glass T/R VDE/cULus

Request Free Samples

2120 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Chip
Acting	Fast
Application	Circuits With Inrush
Fuse Size (mm)	3.2 X 1.6 X 0.6
Current Rating (A)	5
Voltage Rating (V)	32
Maximum AC Voltage Rating (V)	32
Maximum DC Voltage Rating (V)	63
Typical Melting I2t (A²S)	4.75
Typical Cold Resistance (Ohm)	0.0096
Terminal Form	Solder Pad
Number of Terminals	2
Operating Temperature-Min	-55
Operating Temperature-Max	90
Packing Method	Tape and Reel
Depth (mm)	1.6
Length (mm)	3.2
Height (mm)	0.6
Fuse Body Material	Glass
Terminal Form	Surface Mount
