3404.2466.11 Schurter

3404.2466.11

SKU: 72239

Manufacturer: Schurter

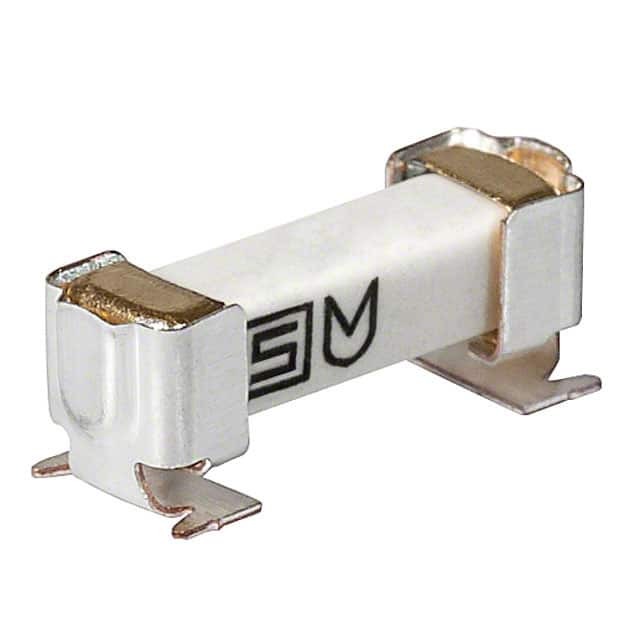

Fuse Chip Fast Acting 1A 250V SMD Pin 11.3 X 4.2mm Ceramic Bag UL/VDE

Request Free Samples

1950 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Chip
Acting	Fast
Application	Industrial Electronic
Fuse Size (mm)	11.3 X 4.2
Current Rating (A)	1
Voltage Rating (V)	250
Maximum AC Voltage Rating (V)	250
Maximum DC Voltage Rating (V)	125
Maximum Power Dissipation (W)	0.5
Typical Melting I2t (A²S)	0.4
Terminal Form	Pin
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Bag
Seated Plane Height (mm)	4
Depth (mm)	4.2
Length (mm)	11.3
Height (mm)	4
Fuse Body Material	Ceramic
