3403.0156.24

SKU: 151743

Manufacturer: Schurter

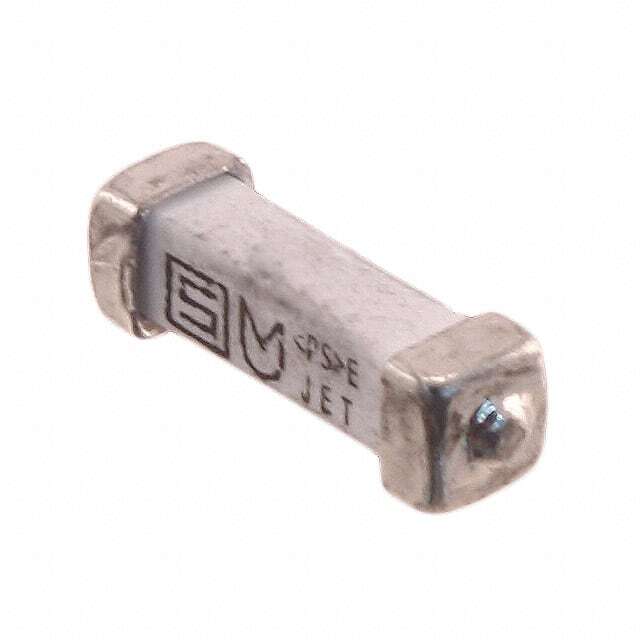

Fuse Chip Slow Blow Acting 0.1A 250V SMD Solder Pad 10.1 X 3mm Ceramic T/R Automotive VDE/cULus

3170 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	Yes
PPAP	Unknown
Type	Chip
Acting	Slow Blow
Application	Primary Protection on SMD PCB
Fuse Size (mm)	10.1 X 3
Current Rating (A)	0.1
Voltage Rating (V)	250
Maximum AC Voltage Rating (V)	250
Maximum DC Voltage Rating (V)	125
Maximum Power Dissipation (W)	0.2
Typical Melting I2t (A²S)	0.04
Terminal Form	Solder Pad
Number of Terminals	2
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tape and Reel
Depth (mm)	3
Length (mm)	10.1
Height (mm)	3
Fuse Body Material	Ceramic
