    PrevRN114-4-02-1M5
    NextRN212-1.2-02

    RN212-0.4-02

    SKU: 49619
    Manufacturer: Schaffner

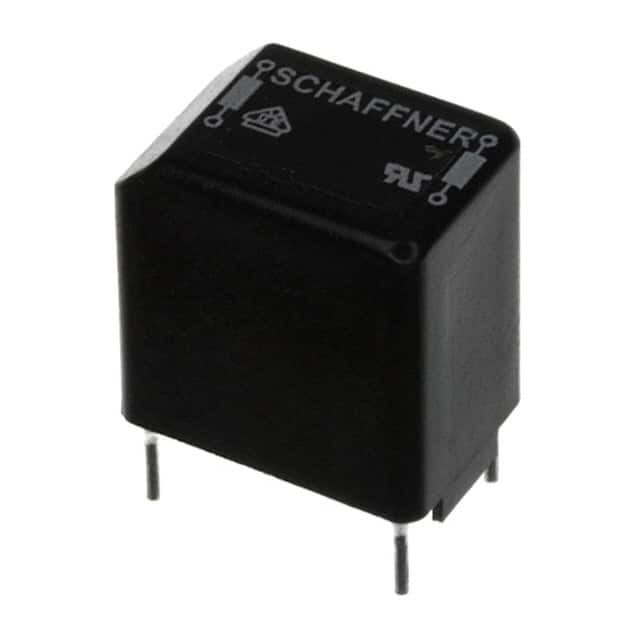

    Common Mode Chokes Dual 39000uH 10kHz 0.4A 1.46Ohm DCR Thru-Hole
    Download sample
    Request Free Samples
    2550 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Obsolete
    HTS 8504.50.80.00
    Automotive No
    PPAP No
    Type Power Line
    Configuration Dual
    Number of Lines 2
    Inductance (H) 39000u
    Test Frequency (Hz) 10k
    Maximum DC Current (A) 0.4
    Maximum DC Resistance (Ohm) 1.46
    Voltage Rating 250VAC
    Withstand Voltage 1.5kVAC
    Terminal Form Through Hole
    Operating Temperature-Min -40
    Operating Temperature-Max 125
    Length (mm) 18.3
    Depth (mm) 12.8
    • RN212-0.4-02 Price
    • RN21 Series
    • RN212-0.4-02 Datasheet
    • RN212-0.4-02 Application
    • RN212-0.4-02 Pdf
    • RN212-0.4-02 Pinout
    • RN212-0.4-02 Image
    • RN212-0.4-02 Picture
    • RN212-0.4-02 In Stock
    • RN212-0.4-02 Distributor
    • RN212-0.4-02 Common Mode Chokes
    • RN212-0.4-02 Schaffner
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Obsolete
    HTS 8504.50.80.00
    Automotive No
    PPAP No
    Type Power Line
    Configuration Dual
    Number of Lines 2
    Inductance (H) 39000u
    Test Frequency (Hz) 10k
    Maximum DC Current (A) 0.4
    Maximum DC Resistance (Ohm) 1.46
    Voltage Rating 250VAC
    Withstand Voltage 1.5kVAC
    Terminal Form Through Hole
    Operating Temperature-Min -40
    Operating Temperature-Max 125
    Length (mm) 18.3
    Depth (mm) 12.8
