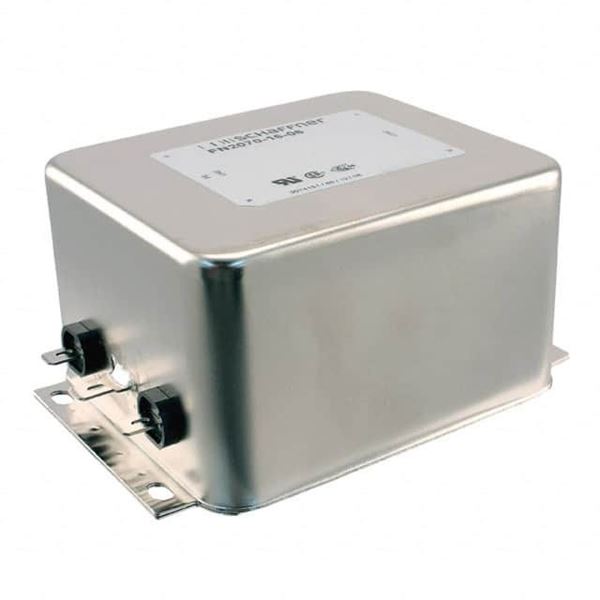

FN2070-16-06 Schaffner

FN2070-16-06

SKU: 30390

Manufacturer: Schaffner

Power Line Filter Multi-Stage EMI 0Hz to 400Hz 16A 250VAC Quick Connect Chassis Mount

Download sample

Request Free Samples

4200 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8532.29.00.40
Automotive	No
PPAP	No
Type	Multi-Stage EMI
Current Rating-Max(A)	16
Maximum Leakage Current (mA)	0.66
Voltage Rating-Max	250VAC
Inductance (mH)	2.8
Capacitance Value (uF)	1
Number of Phases	1
Terminal Form	Chassis Mount
Termination	Quick Connect
Operating Temperature-Min	-25
Operating Temperature-Max	100
Product Weight (g)	1000
Length (mm)	119
Depth (mm)	85.5
