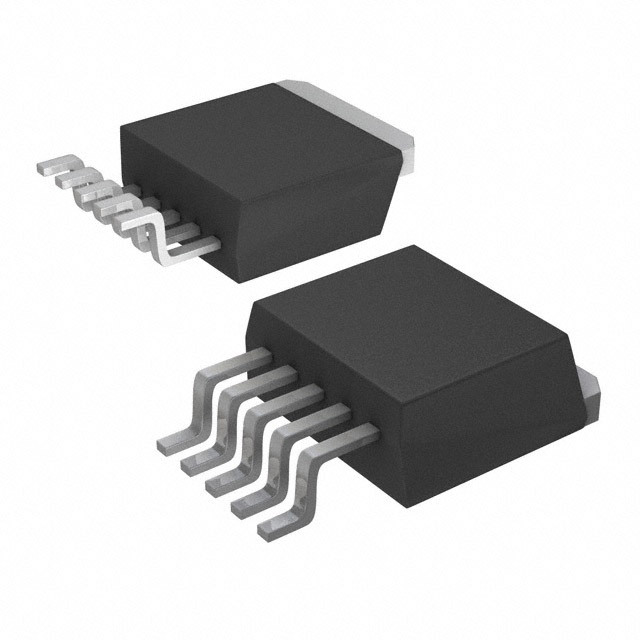

SI-3011ZD

SKU: 63882

Manufacturer: Sanken Electric Co., Ltd

LDO Regulator Pos 1.2V to 5V 3A 6-Pin(5+Tab) TO-263

15180 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Output Type	Adjustable
Output Voltage (V)	1.2 to 5
Maximum Output Current (A)	3
Minimum Input Voltage (V)	2
Maximum Input Voltage (V)	6
Maximum Dropout Voltage @ Current (V)	0.6@3A
Reference Voltage (V)	1.122
Line Regulation	10mV
Load Regulation	40mV
Maximum Quiescent Current (mA)	1.5
Maximum Power Dissipation (mW)	3000
Junction to Ambient	33.3°C/W
Junction to Case	3°C/W
Special Features	Current Limit
Operating Temperature-Min	-20
Operating Temperature-Max	85
Original Package	TO-263
Pin Count	6
Standard Package Method	TO-263
Terminal Form	Surface Mount
Package Height	4.5
Package Length	10
Package Width	9.2
PCB changed	5
Tab	Tab
