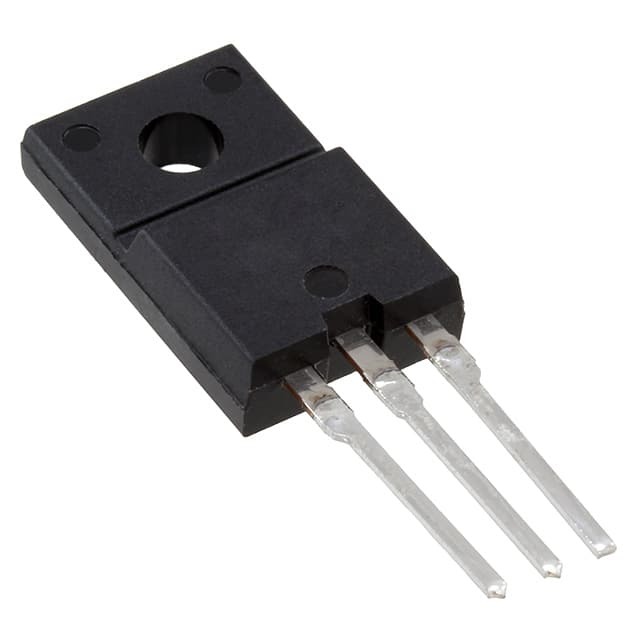

FMU-24S Sanken Electric Co., Ltd

FMU-24S

SKU: 86928

Manufacturer: Sanken Electric Co., Ltd

Diode Switching 400V 10A 3-Pin(3+Tab) TO-220F

Download sample

Request Free Samples

140 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	NRND
Automotive	No
PPAP	No
Type	Switching Diode
Configuration	Dual Common Cathode
Peak Reverse Repetitive Voltage (V)	400
Maximum Continuous Forward Current (A)	10
Peak Non-Repetitive Surge Current (A)	40
Peak Forward Voltage (V)	1.5@5A
Peak Reverse Current (uA)	50
Peak Reverse Recovery Time (ns)	400
Operating Temperature-Min	-40
Operating Temperature-Max	150
Original Package	TO-220F
Pin Count	3
Standard Package Method	TO-220
Terminal Form	Through Hole
Package Height	16.9
Package Length	10
Package Width	4.2
PCB changed	3
Tab	Tab
