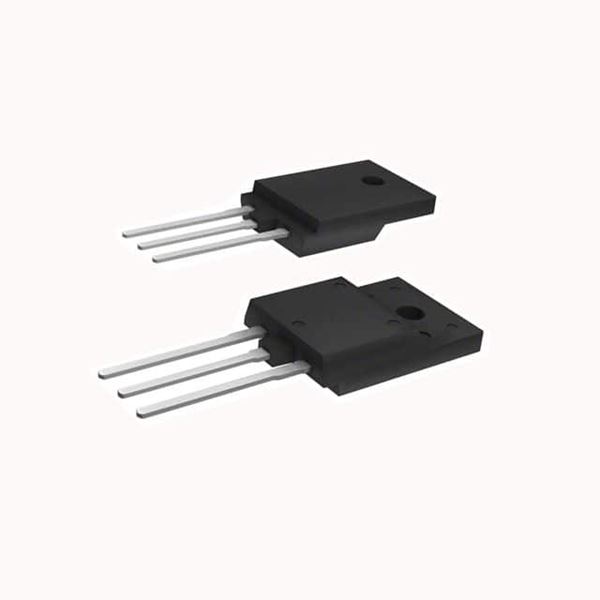

    FMN-4306S

    SKU: 136542
    Manufacturer: Sanken Electric Co., Ltd
    Diode Switching 600V 30A 3-Pin(3+Tab) TO-3PF
    1240 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant with Exemption
    ECCN (US) EAR99
    Part Status Active
    Automotive No
    PPAP No
    Type Switching Diode
    Configuration Dual Common Cathode
    Peak Reverse Repetitive Voltage (V) 600
    Maximum Continuous Forward Current (A) 30
    Peak Non-Repetitive Surge Current (A) 150
    Peak Forward Voltage (V) 1.3@15A
    Peak Reverse Current (uA) 100
    Peak Reverse Recovery Time (ns) 100
    Operating Temperature-Min -40
    Operating Temperature-Max 150
    Original Package TO-3PF
    Pin Count 3
    Standard Package Method TO-3PF
    Terminal Form Through Hole
    Package Height 23
    Package Length 15.6
    Package Width 5.5
    PCB changed 3
    Tab Tab
