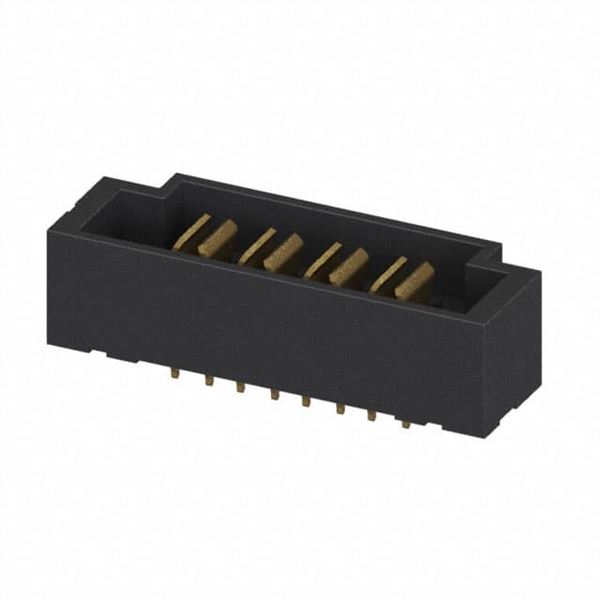

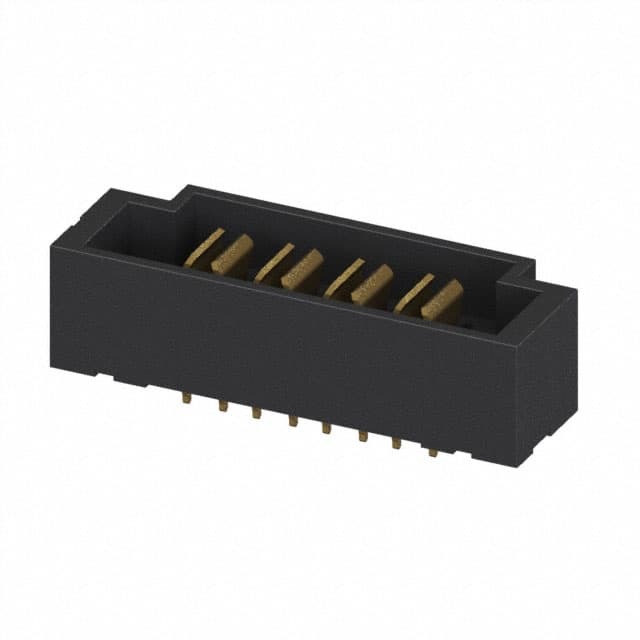

UPT-04-03.0-01-L-V

SKU: 114385

Manufacturer: Samtec

Conn Terminal Strip HDR 4Power POS 3.81mm Solder ST Top Entry Thru-Hole Tube

3830 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Terminal Strip
Gender	HDR
Number of Contacts	4Power
Number of Rows	1
Termination Method	Solder
Terminal Pitch (mm)	3.81
Body Orientation	Straight
Current Rating-Max(A)	20
Voltage Rating-Max	620VDC
Insulation Resistance (MOhm)	100000
Maximum Contact Resistance (mOhm)	15
Operating Temperature-Min	-55
Operating Temperature-Max	125
Mating Cycle (Cycles)	100
Packing Method	Tube
Length (mm)	25.5
Depth (mm)	9
Height (mm)	6.71
Tail Length (mm)	3
