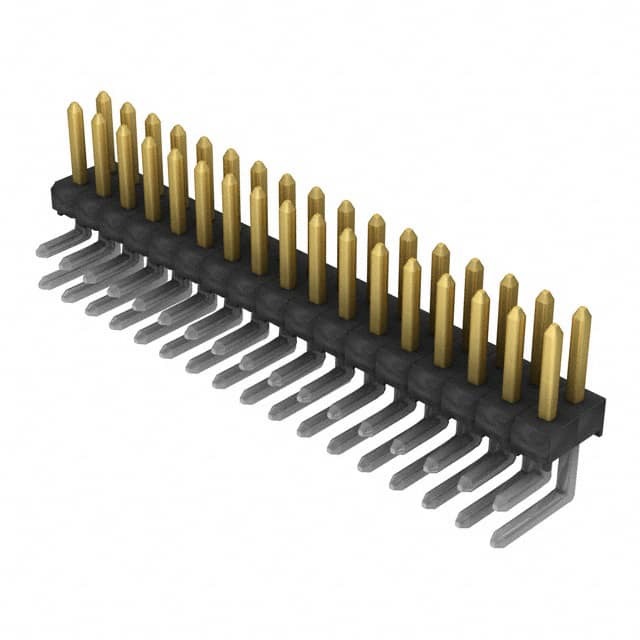

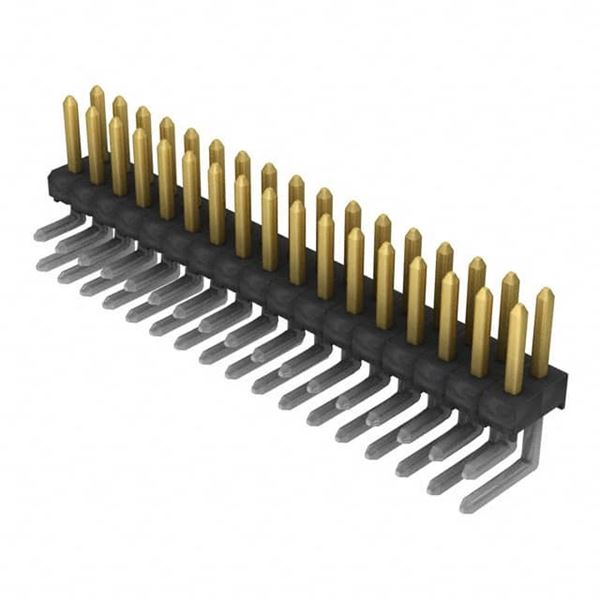

TSW-117-08-L-D-RA Samtec

TSW-117-08-L-D-RA

SKU: 80625

Manufacturer: Samtec

Conn Unshrouded Header HDR 34 POS 2.54mm Solder RA Side Entry Thru-Hole Bulk

Request Free Samples

1130 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	Unshrouded Header
Gender	HDR
Number of Contacts	34
Number of Rows	2
Termination Method	Solder
Terminal Pitch (mm)	2.54
Body Orientation	Right Angle
Row Spacing (mm)	2.54
Current Rating-Max(A)	6.3/Contact
Voltage Rating-Max	450VAC
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Bulk
Length (mm)	43.18
Depth (mm)	12.76
Height (mm)	5.56
Tail Length (mm)	2.29
