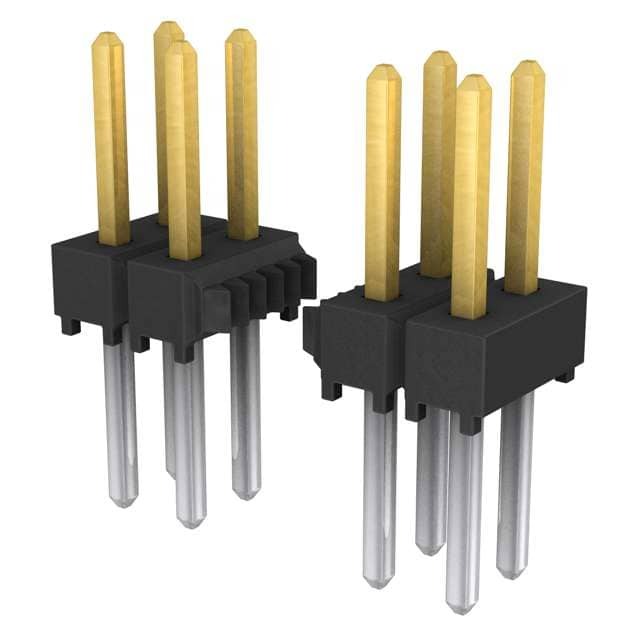

TSW-105-08-L-D

SKU: 87718

Manufacturer: Samtec

Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST Top Entry Thru-Hole Bulk

1140 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	Unshrouded Header
Gender	HDR
Number of Contacts	10
Number of Rows	2
Termination Method	Solder
Terminal Pitch (mm)	2.54
Body Orientation	Straight
Row Spacing (mm)	2.54
Current Rating-Max(A)	6.3/Contact
Voltage Rating-Max	550VAC
Insulation Resistance (MOhm)	1000
Maximum Contact Resistance (mOhm)	15
Operating Temperature-Min	-55
Operating Temperature-Max	125
Mating Cycle (Cycles)	1000
Packing Method	Bulk
Length (mm)	12.7
Depth (mm)	5.08
Height (mm)	8.38
Tail Length (mm)	5.08
