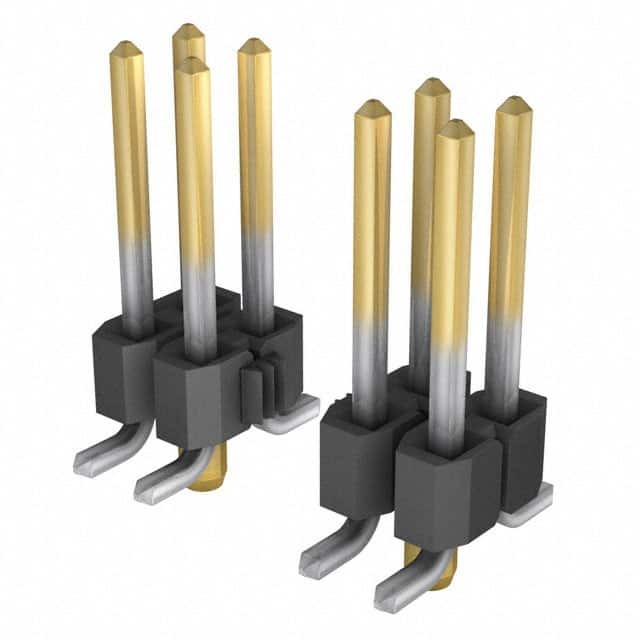

TSM-105-02-S-DV-A Samtec

TSM-105-02-S-DV-A

SKU: 31209

Manufacturer: Samtec

Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST Top Entry SMD Tube

Download sample

Request Free Samples

2590 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Unshrouded Header
Gender	HDR
Number of Contacts	10
Number of Rows	2
Termination Method	Solder
Terminal Pitch (mm)	2.54
Body Orientation	Straight
Row Spacing (mm)	2.54
Current Rating-Max(A)	5.4/Contact
Voltage Rating-Max	475VAC
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tube
Length (mm)	12.7
Depth (mm)	7.36
Height (mm)	11.94
