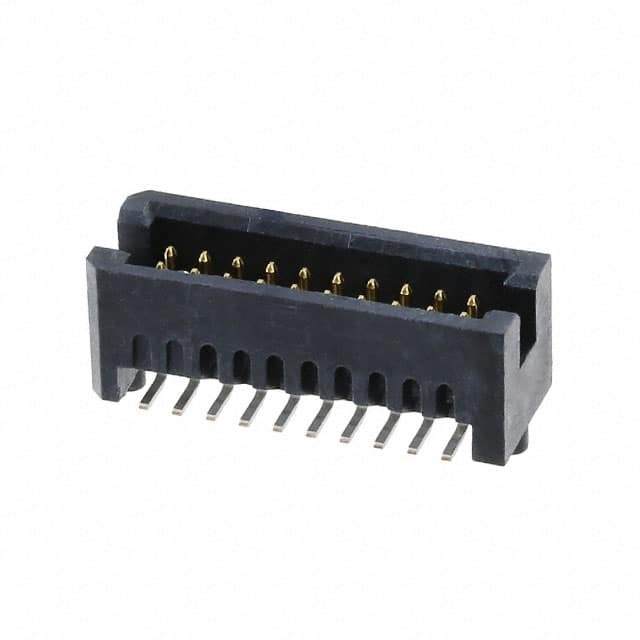

TFM-110-02-L-D-A

SKU: 59573

Manufacturer: Samtec

Conn Shrouded Header (4 Sides) HDR 20 POS 1.27mm Solder ST Top Entry SMD TIGER EYE™ Tube

3470 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	Shrouded Header (4 Sides)
Gender	HDR
Number of Contacts	20
Number of Rows	2
Termination Method	Solder
Terminal Pitch (mm)	1.27
Body Orientation	Straight
Polarization Type	Dual Side Slot/Right Slot
Row Spacing (mm)	1.27
Speed Rating (Gbps)	8
Current Rating-Max(A)	3.2/Contact
Voltage Rating-Max	250VAC
Insulation Resistance (MOhm)	5000
Maximum Contact Resistance (mOhm)	15
Operating Temperature-Min	-55
Operating Temperature-Max	125
Mating Cycle (Cycles)	2500
Packing Method	Tube
Length (mm)	15.88
Depth (mm)	5.97
Height (mm)	5.74
Tradename	TIGER EYE™
Contact Plating Thickness	(0.38/1.27)um
