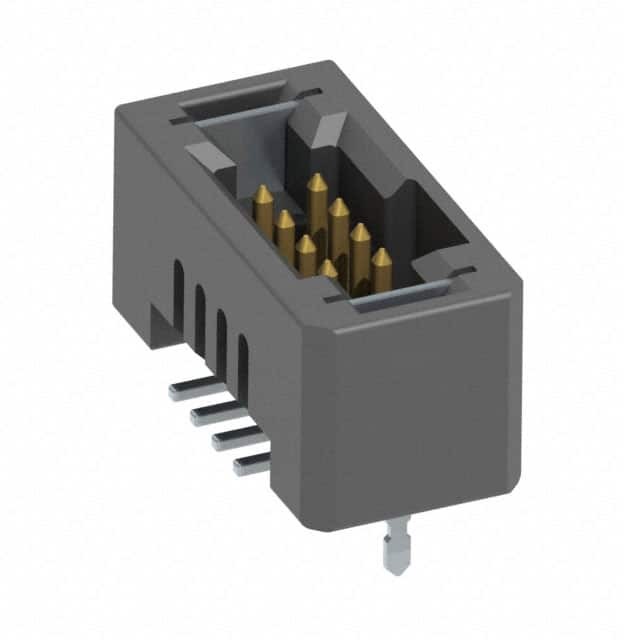

TFM-104-02-S-D-WT-K-TR

SKU: 78545

Manufacturer: Samtec

Conn Shrouded Header (4 Sides) HDR 8 POS 1.27mm Solder ST Top Entry SMD TIGER EYE™ T/R

1070 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	Shrouded Header (4 Sides)
Gender	HDR
Number of Contacts	8
Number of Rows	2
Termination Method	Solder
Terminal Pitch (mm)	1.27
Body Orientation	Straight
Polarization Type	Dual Slot
Row Spacing (mm)	1.27
Speed Rating (Gbps)	8
Current Rating-Max(A)	3.2/Contact
Voltage Rating-Max	250VAC
Insulation Resistance (MOhm)	5000
Maximum Contact Resistance (mOhm)	15
Operating Temperature-Min	-55
Operating Temperature-Max	125
Mating Cycle (Cycles)	10000
Length (mm)	11.76
Depth (mm)	5.97
Height (mm)	5.74
Tradename	TIGER EYE™
