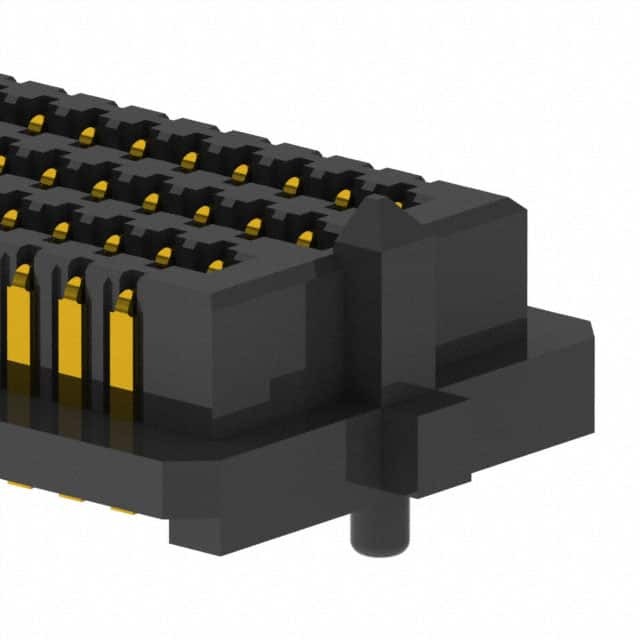

SEAM-50-03.0-L-08-2-A-K-TR

SKU: 49741

Manufacturer: Samtec

Conn Open Pin Field Array HDR 400 POS 1.27mm Solder ST Top Entry SMD SEARAY™ T/R

2970 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Open Pin Field Array
Gender	HDR
Number of Contacts	400
Number of Rows	8
Termination Method	Solder
Terminal Pitch (mm)	1.27
Body Orientation	Straight
Polarization Type	Right Slot/Left Key
Row Spacing (mm)	1.27
Speed Rating (Gbps)	56
Current Rating-Max(A)	2.7/Contact
Voltage Rating-Max	240VAC
Insulation Resistance (MOhm)	15000
Maximum Contact Resistance (mOhm)	15
Operating Temperature-Min	-55
Operating Temperature-Max	125
VITA Standard	VITA 47/VITA 57.1/VITA 57.4/VITA 74
Mating Cycle (Cycles)	1000
Packing Method	Tape and Reel
Length (mm)	69.37
Depth (mm)	12.14
Height (mm)	6.6
Tradename	SEARAY™
