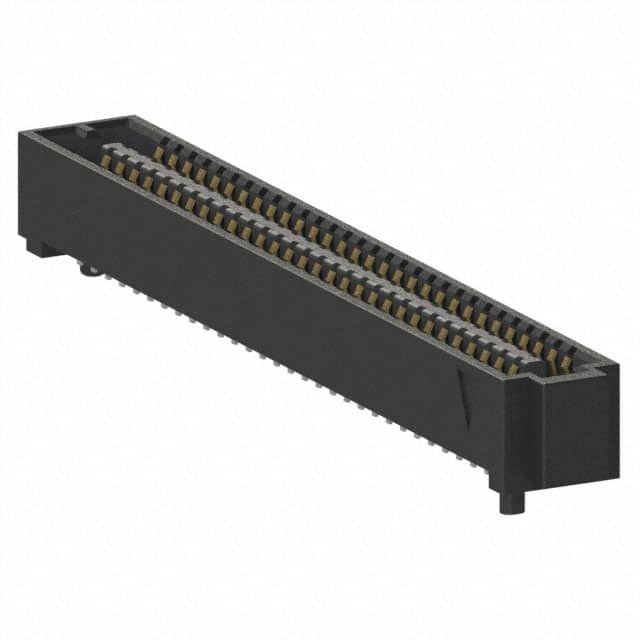

SEAF8-30-05.0-S-04-2-K

SKU: 14241

Manufacturer: Samtec

Conn Open Pin Field Array SKT 120 POS 0.8mm Solder ST Top Entry SMD SEARAY™ T/R

1910 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	Open Pin Field Array
Gender	SKT
Number of Contacts	120
Number of Rows	4
Termination Method	Solder
Terminal Pitch (mm)	0.8
Body Orientation	Straight
Polarization Type	Right Slot/Left Key
Row Spacing (mm)	2
Speed Rating (Gbps)	56
Current Rating-Max(A)	1.3/Contact
Voltage Rating-Max	220VAC
Insulation Resistance (MOhm)	15000
Maximum Contact Resistance (mOhm)	15
Operating Temperature-Min	-55
Operating Temperature-Max	125
Mating Cycle (Cycles)	1000
Packing Method	Tape and Reel
Length (mm)	29.84
Depth (mm)	9.8
Height (mm)	4.57
Tradename	SEARAY™
Contact Plating Thickness	(0.76/1.27)um
