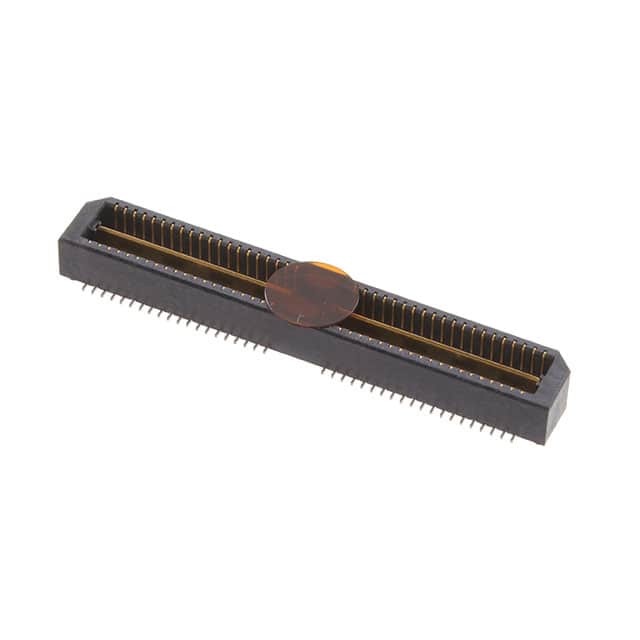

QTE-040-01-L-D-A-K-TR

SKU: 49554

Manufacturer: Samtec

Conn High Speed Micro Plane HDR 80 POS 0.8mm Solder ST Top Entry SMD T/R

3090 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	High Speed Micro Plane
Gender	HDR
Number of Contacts	80
Number of Rows	2
Termination Method	Solder
Terminal Pitch (mm)	0.8
Body Orientation	Straight
Speed Rating (Gbps)	14
Current Rating-Max(A)	(2/23)/Contact
Voltage Rating-Max	225VAC
Insulation Resistance (MOhm)	5000
Maximum Contact Resistance (mOhm)	15
Operating Temperature-Min	-55
Operating Temperature-Max	125
Mating Cycle (Cycles)	100
Packing Method	Tape and Reel
Length (mm)	40
Depth (mm)	7.11
Height (mm)	4.27
