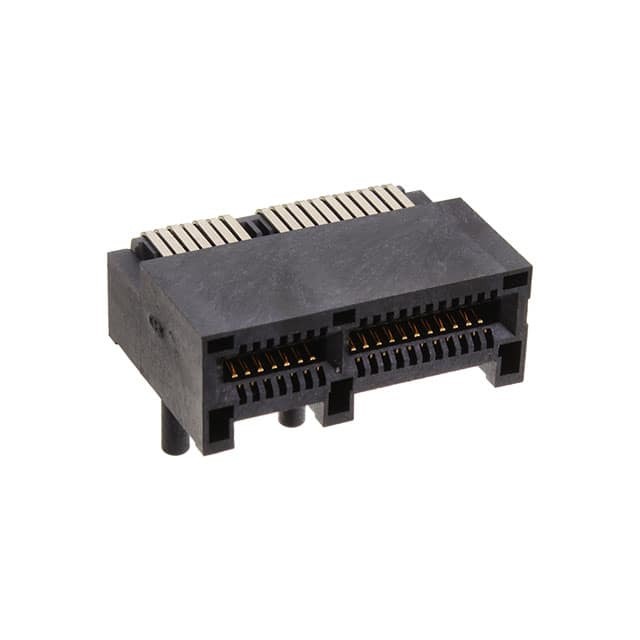

PCIE-036-02-S-D-RA Samtec

PCIE-036-02-S-D-RA

SKU: 49359

Manufacturer: Samtec

Conn PCI Express Card Edge F 36 POS 1mm Solder RA Thru-Hole Tube

Download sample

Request Free Samples

3510 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	PCI Express Card Edge
Gender	F
Card Type	PCI Express
Card Thickness (mm)	1.57
Number of Contacts	36
Number of Rows	2
Termination Method	Solder
Contact Type	Cantilever Bellows
Terminal Pitch (mm)	1
Body Orientation	Right Angle
Current Rating-Max(A)	2.2/Contact
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tube
Length (mm)	25
Depth (mm)	18.85
Height (mm)	9.45
Tail Length (mm)	2.3
