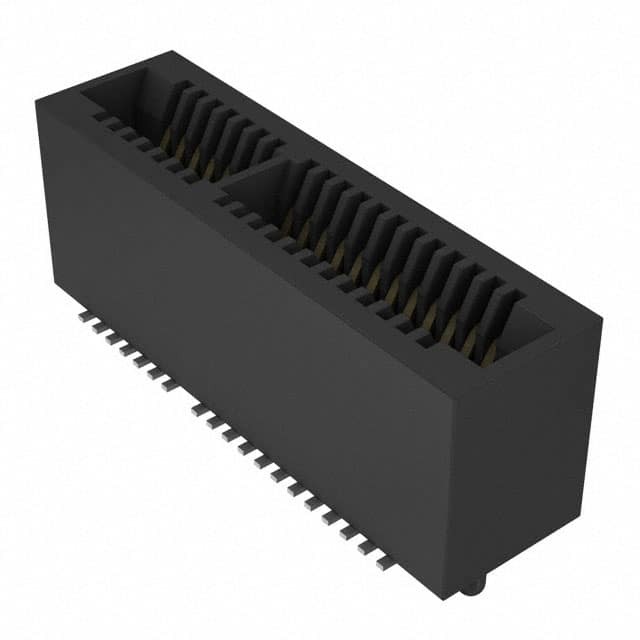

MEC1-120-02-S-D-A-K-TR

SKU: 94292

Manufacturer: Samtec

Conn Card Edge SKT 40 POS 1mm Solder ST SMD T/R

2550 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	Card Edge
Gender	SKT
Card Type	Dual Edge
Card Thickness (mm)	1.58
Number of Contacts	40
Number of Rows	2
Termination Method	Solder
Terminal Pitch (mm)	1
Body Orientation	Straight
Mounting Styles	Alignment Pin
Current Rating-Max(A)	2.2/Contact
Voltage Rating-Max	250VAC
Insulation Resistance (MOhm)	5000
Maximum Contact Resistance (mOhm)	15
Operating Temperature-Min	-55
Operating Temperature-Max	125
Mating Cycle (Cycles)	500
Packing Method	Tape and Reel
Length (mm)	24.54
Depth (mm)	6.99
Height (mm)	9.04
