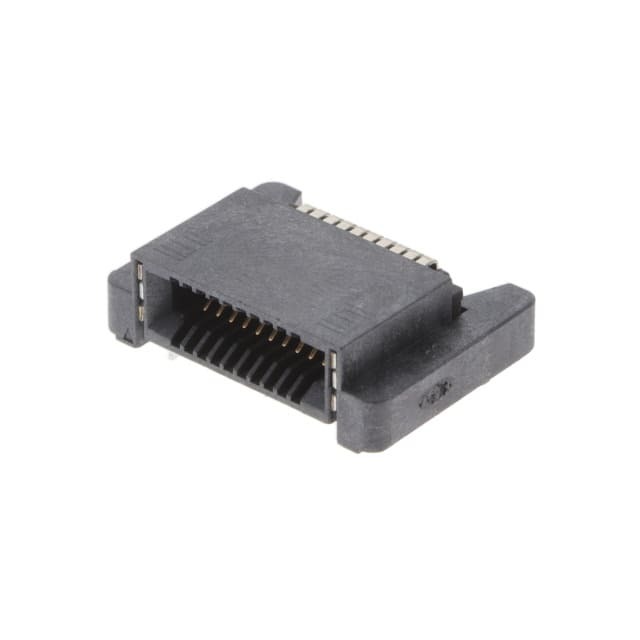

HSEC8-110-01-L-RA-TR Samtec

HSEC8-110-01-L-RA-TR

SKU: 103789

Manufacturer: Samtec

Conn Card Edge SKT 20 POS 0.8mm Solder RA SMD T/R

Request Free Samples

2390 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	Card Edge
Gender	SKT
Card Type	Dual Edge
Card Thickness (mm)	1.6
Number of Contacts	20
Number of Rows	2
Termination Method	Solder
Contact Type	Cantilever Bellows
Terminal Pitch (mm)	0.8
Body Orientation	Right Angle
Current Rating-Max(A)	2.8/Contact
Voltage Rating-Max	240VAC
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	16.61
Depth (mm)	12.05
Height (mm)	5.2
