FLE-120-01-G-DV-A

SKU: 68432

Manufacturer: Samtec

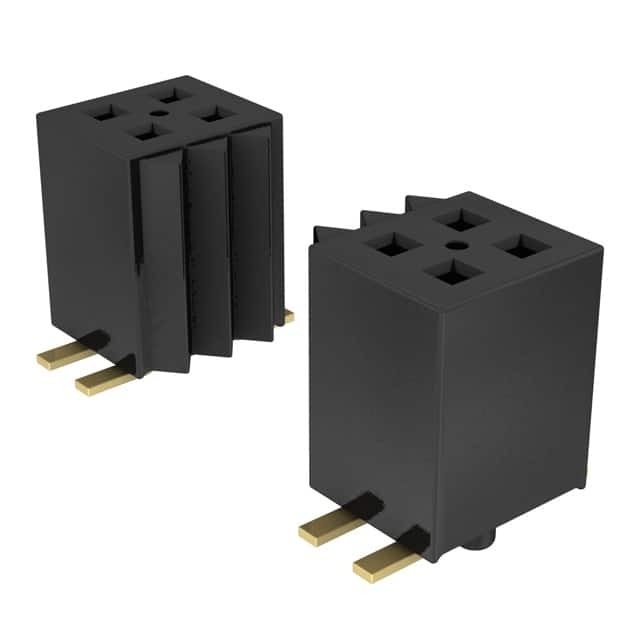

Conn Socket Strip SKT 40 POS 1.27mm Solder ST SMD Tube

1390 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Socket Strip
Gender	SKT
Number of Contacts	40
Number of Rows	2
Termination Method	Solder
Terminal Pitch (mm)	1.27
Body Orientation	Straight
Row Spacing (mm)	1.27
Speed Rating (Gbps)	8
Current Rating-Max(A)	2.9/Contact
Maximum Contact Resistance (mOhm)	15
Operating Temperature-Min	-55
Operating Temperature-Max	125
Mating Cycle (Cycles)	100
Packing Method	Tube
Length (mm)	25.51
Depth (mm)	4.6
Height (mm)	4.55
