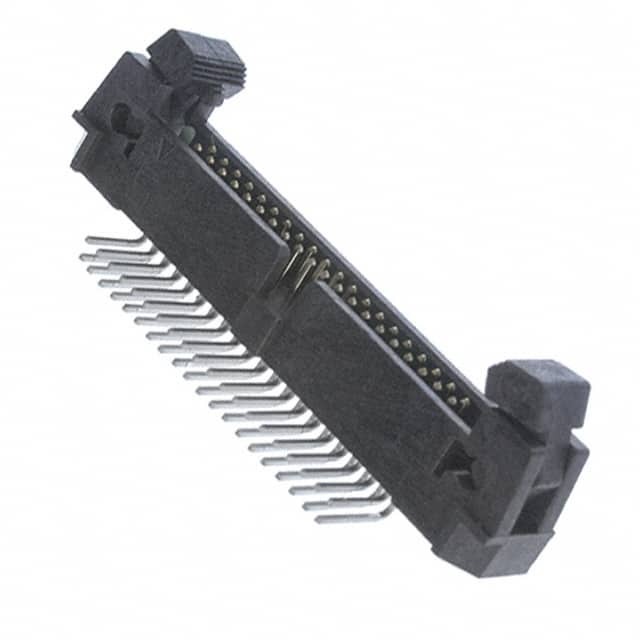

    EHF-120-01-L-D-RA

    SKU: 115182
    Manufacturer: Samtec
    Conn Ejector Header HDR 40 POS 1.27mm Solder RA Side Entry Thru-Hole Tube
    Download sample
    Request Free Samples
    2550 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Active
    HTS 8536.69.40.40
    Automotive No
    PPAP No
    Type Ejector Header
    Gender HDR
    Number of Contacts 40
    Number of Rows 2
    Termination Method Solder
    Terminal Pitch (mm) 1.27
    Body Orientation Right Angle
    Polarization Type Center Key/Center Slot
    Row Spacing (mm) 1.27
    Current Rating-Max(A) 1.75/Contact
    Operating Temperature-Min -55
    Operating Temperature-Max 125
    Packing Method Tube
    Length (mm) 39.88
    Depth (mm) 13.84
    Height (mm) 6.67
    Tail Length (mm) 2.29
