    PrevDWR-P1S-BQ200-104
    NextEHF-108-01-L-D-RA

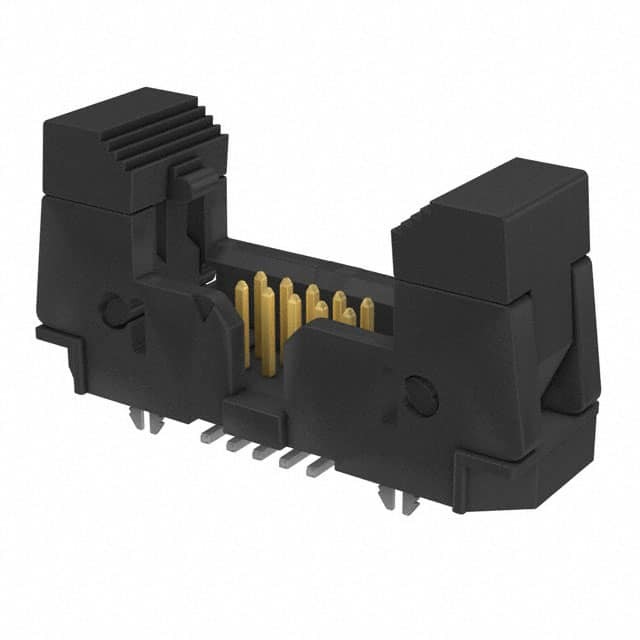

    EHF-105-01-L-D-SM-LC

    SKU: 157783
    Manufacturer: Samtec
    Conn Ejector Header HDR 10 POS 1.27mm Solder ST Top Entry SMD Tube
    Download sample
    Request Free Samples
    1860 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Active
    HTS 8536.69.40.40
    Automotive No
    PPAP No
    Type Ejector Header
    Gender HDR
    Number of Contacts 10
    Number of Rows 2
    Termination Method Solder
    Terminal Pitch (mm) 1.27
    Body Orientation Straight
    Polarization Type Center Key/Center Slot
    Row Spacing (mm) 1.27
    Current Rating-Max(A) 1.75/Contact
    Operating Temperature-Min -55
    Operating Temperature-Max 125
    Packing Method Tube
    Length (mm) 20.83
    Depth (mm) 7.52
    Height (mm) 11.55
    Contact Plating Thickness (0.25/1.27)um
    • EHF-105-01-L-D-SM-LC Price
    • EHF- Series
    • EHF-105-01-L-D-SM-LC Datasheet
    • EHF-105-01-L-D-SM-LC Application
    • EHF-105-01-L-D-SM-LC Pdf
    • EHF-105-01-L-D-SM-LC Pinout
    • EHF-105-01-L-D-SM-LC Image
    • EHF-105-01-L-D-SM-LC Picture
    • EHF-105-01-L-D-SM-LC In Stock
    • EHF-105-01-L-D-SM-LC Distributor
    • EHF-105-01-L-D-SM-LC Connector Headers and PCB Receptacles
    • EHF-105-01-L-D-SM-LC Samtec
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Active
    HTS 8536.69.40.40
    Automotive No
    PPAP No
    Type Ejector Header
    Gender HDR
    Number of Contacts 10
    Number of Rows 2
    Termination Method Solder
    Terminal Pitch (mm) 1.27
    Body Orientation Straight
    Polarization Type Center Key/Center Slot
    Row Spacing (mm) 1.27
    Current Rating-Max(A) 1.75/Contact
    Operating Temperature-Min -55
    Operating Temperature-Max 125
    Packing Method Tube
    Length (mm) 20.83
    Depth (mm) 7.52
    Height (mm) 11.55
    Contact Plating Thickness (0.25/1.27)um
