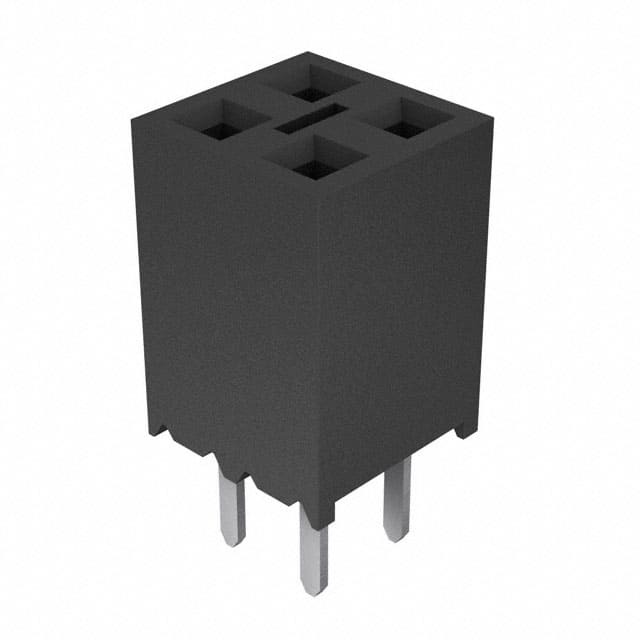

BCS-102-F-D-TE

SKU: 25139

Manufacturer: Samtec

Conn Socket Strip SKT 4 POS 2.54mm Solder ST Top Entry Thru-Hole TIGER CLAW™ Layer

4190 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	Socket Strip
Gender	SKT
Number of Contacts	4
Number of Rows	2
Termination Method	Solder
Terminal Pitch (mm)	2.54
Body Orientation	Straight
Row Spacing (mm)	2.54
Current Rating-Max(A)	4.6/Contact
Voltage Rating-Max	475VAC
Maximum Contact Resistance (mOhm)	10
Operating Temperature-Min	-55
Operating Temperature-Max	125
Mating Cycle (Cycles)	2500
Packing Method	Layer
Length (mm)	5.08
Depth (mm)	5.08
Height (mm)	7.37
Tradename	TIGER CLAW™
Tail Length (mm)	3.1
