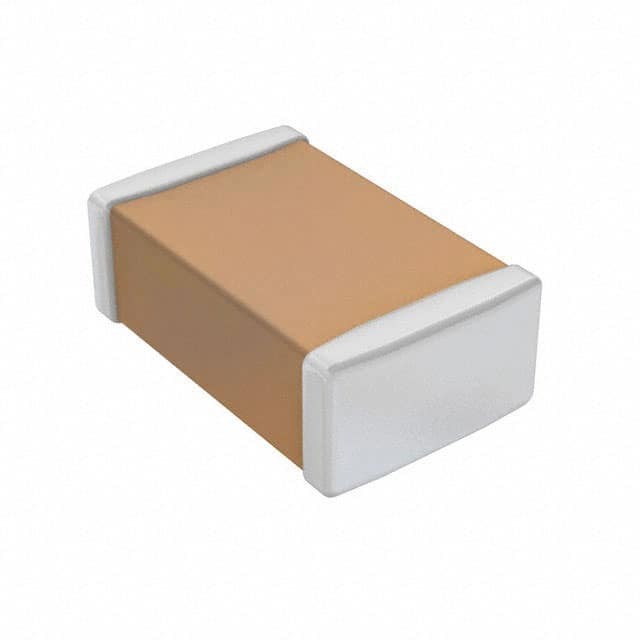

CL21C471JBANNNC

SKU: 145684

Manufacturer: Samsung Electro-Mechanics

Ceramic Capacitors470pF 50V C0G 5% Pad SMD 0805 125°C Low ESR T/R

2610 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8532.24.00.60
Automotive	No
PPAP	No
Capacitance Value	470pF
Tolerance	5%
Voltage	50VDC
Equivalent Series Resistance Type	Low
Dielectric	C0G
Technology	Standard
Microwave Application	Yes
Special Features	Highly Reliable Performance
Construction	Flat
Terminal Form	Surface Mount
Terminal Form	Pad
Number of Terminals	2
Case Style	Ceramic Chip
Size (mm)	2 X 1.25 X 0.65
Case Code - in	0805
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	2
Depth (mm)	1.25
Height (mm)	0.65
Product Weight (g)	0.007192
Length Tolerance (mm)	±0.1
Depth Tolerance (mm)	±0.1
