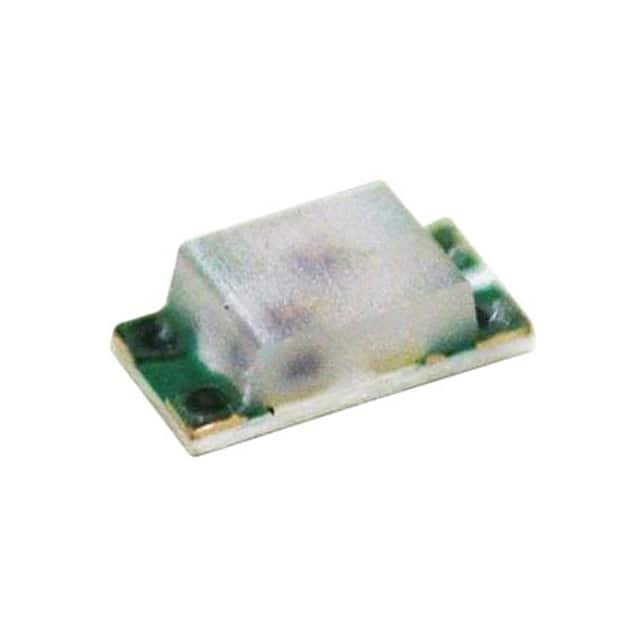

SML-D22MUWT86

SKU: 31002

Manufacturer: ROHM Semiconductor

LED Bi-Color Red/Yellowish Green 4-Pin Chip 0603(1608Metric) T/R

2000 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.20.00
Automotive	No
PPAP	No
Type	Bi-Color
Product Category	Chip LED
Color	Red/Yellow Green
Number of LEDs	1
LED Body Material	AlGaInP
Lens Shape Type	Rectangular
Lens Dimensions (mm)	1.2x0.8x0.37
Lens Appearance	Milkey White
Mounting Orientation	Top Mount
Intensity	10mcd
Dominant Wavelength (nm)	620/570
Maximum Forward Current (mA)	25
Test Current (mA)	5
Maximum Forward Voltage (V)	1.9(Typ)/2(Typ)
Reverse Voltage (V)	5(Max)
Maximum Power Dissipation (mW)	65/67
Operating Temperature-Min	-40
Operating Temperature-Max	105
Lead Standoff	No
Supplier Color	Red/Yellowish Green
High Power	Yes
High Brightness	Yes
Packing Method	Tape and Reel
Original Package	Case 0603(1608Metric)
Pin Count	4
Terminal Form	Surface Mount
Package Length	1.6
Package Width	0.8
