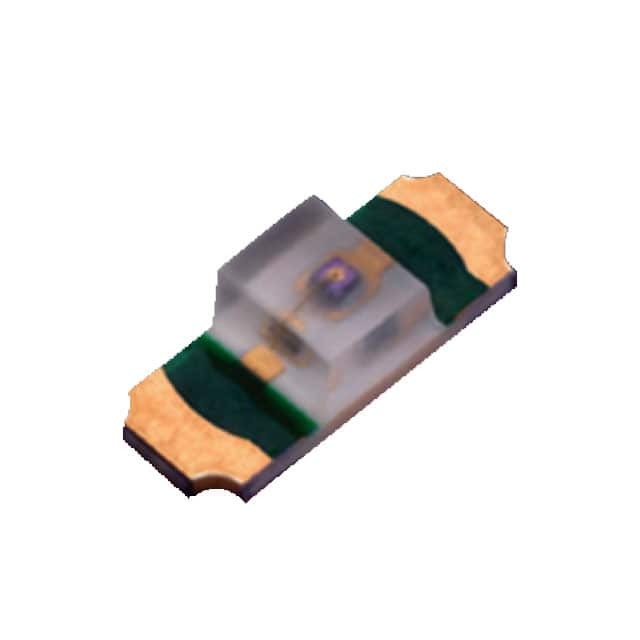

SML-811WTT86A

SKU: 45231

Manufacturer: ROHM Semiconductor

LED Uni-Color Yellow 2-Pin Chip 1305(3412Metric) T/R

1570 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.20.00
Automotive	No
PPAP	No
Type	Uni-Color
Product Category	Chip LED
Color	Yellow
Number of LEDs	1
LED Body Material	AlGaInP
Lens Shape Type	Rectangular
Lens Dimensions (mm)	1.25x1.2x0.82
Lens Appearance	Colorless Non Diffused
Mounting Orientation	Reverse Mount
Intensity	28mcd
Dominant Wavelength (nm)	590
Maximum Forward Current (mA)	25
Test Current (mA)	10
Maximum Forward Voltage (V)	1.95(Typ)
Reverse Voltage (V)	5
Maximum Power Dissipation (mW)	62
Operating Temperature-Min	-40
Operating Temperature-Max	85
Lead Standoff	No
Supplier Color	Yellow
High Power	No
High Brightness	No
Original Package	Case 1305(3412Metric)
Pin Count	2
Terminal Form	Surface Mount
Package Height	1.1
Package Length	3.4
Package Width	1.25
