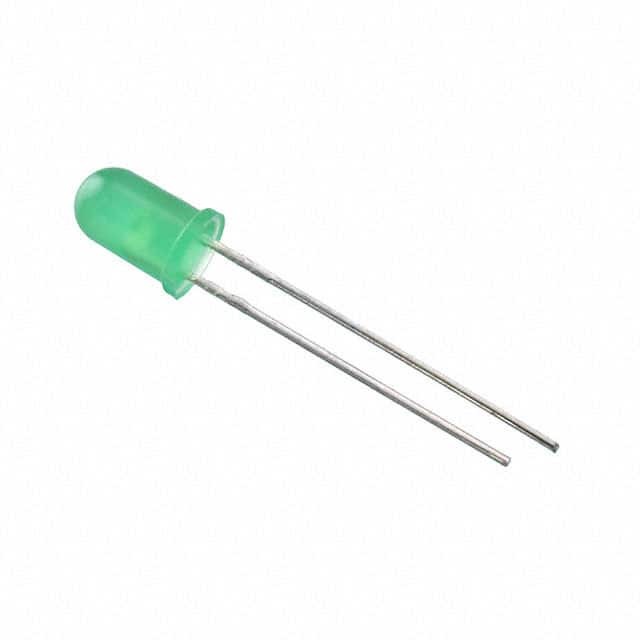

SLR-56MG3F

SKU: 30980

Manufacturer: ROHM Semiconductor

LED Uni-Color Yellowish Green 563nm 2-Pin T-1 3/4 Bulk

2450 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.20.00
Automotive	No
PPAP	No
Type	Uni-Color
Product Category	Standard LED
Color	Yellow Green
Number of LEDs	1
LED Body Material	GaP
Lens Shape Type	Circular
Lens Dimensions (mm)	5x5x7.7
Lens Appearance	Colorless
Mounting Orientation	Top Mount
Intensity	16mcd
Dominant Wavelength (nm)	572
Peak Wavelength (nm)	563
Viewing Angle (°)	40
Maximum Forward Current (mA)	25
Test Current (mA)	10
Reverse Voltage (V)	3
Typical Forward Voltage (V)	2.1
Maximum Power Dissipation (mW)	75
Operating Temperature-Min	-25
Operating Temperature-Max	85
Lead Standoff	No
Supplier Color	Yellowish Green
High Power	No
High Brightness	No
Packing Method	Bulk
Original Package	T-1 3/4
Pin Count	2
Standard Package Method	T-1 3/4
Diameter	5.5
Terminal Form	Through Hole
Package Height	8.7
