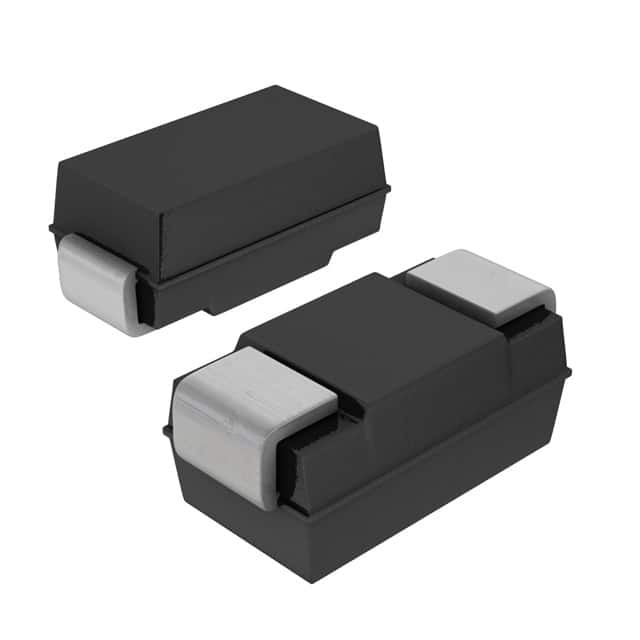

PTZTE254.3B

SKU: 28232

Manufacturer: ROHM Semiconductor

Diode Zener Single 4.3V 5% 1000mW 2-Pin PMDS T/R

3180 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	NRND
HTS	8541.10.00.50
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Voltage Regulator
Configuration	Single
Nominal Zener Voltage (V)	4.3
Zener Voltage Tolerance	5%
Maximum Power Dissipation (mW)	1000
Test Current (mA)	40
Maximum Reverse Leakage Current (uA)	20
Maximum Zener Impedance (Ohm)	15
Maximum Power Dissipation @ 25C (mW)	1000
Operating Temperature-Min	-55
Operating Temperature-Max	150
Supplier Temperature Grade	Automotive
Typical Voltage Temperature Coefficient	-2.1mV/°C
Packing Method	Tape and Reel
Pin Count	2
Standard Package Method	SOD
Original Package	PMDS
Terminal Form	Surface Mount
Package Height	1.9
Package Length	4.5
Package Width	2.6
PCB changed	2
