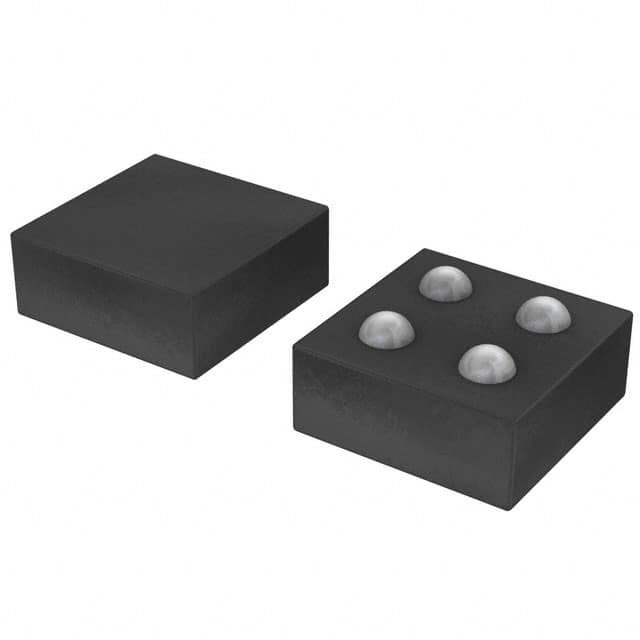

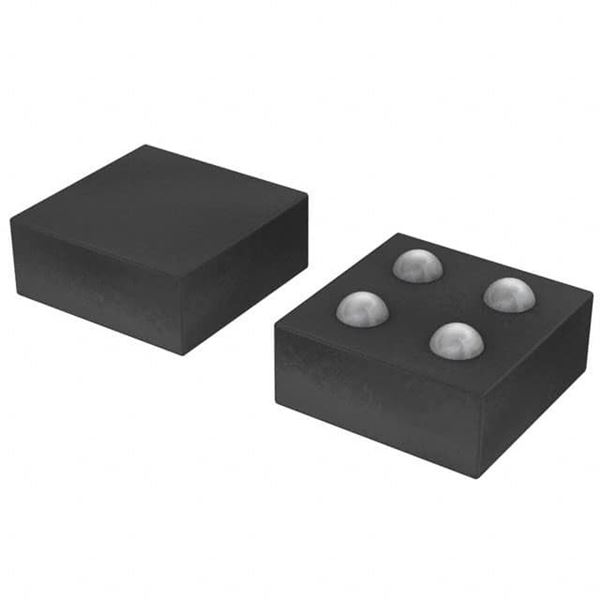

BU52077GWZ-E2

SKU: 16026

Manufacturer: ROHM Semiconductor

Hall Effect Sensor 0.5mA Omnipolar 1.8V 4-Pin UCSP T/R

2590 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Magnetic Type	Omnipolar
Module/IC Classification	IC
Minimum Magnetic Sensor Release Point (Gs)	101
Typical Magnetic Sensor Hysteresis (Gs)	9
Maximum Magnetic Sensor Operating Point (Gs)	190
Maximum Output Current (mA)	0.5
Operating Supply Voltage-Min (V)	1.65
Typical Operating Supply Voltage (V)	1.8
Operating Supply Voltage-Max (V)	3.6
Maximum Supply Current (uA)	8
Maximum Power Dissipation (mW)	100
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	UCSP
Pin Count	4
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	0.25(Max)
Package Length	0.8
Package Width	0.8
PCB changed	4
