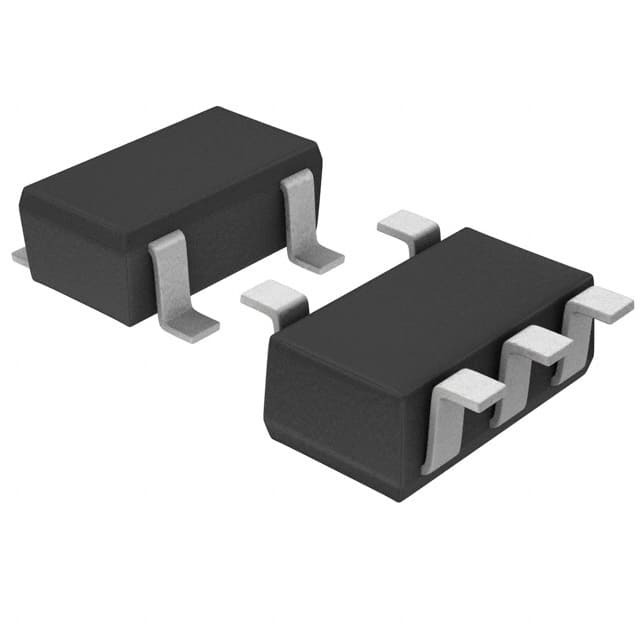

BU4S66G2-TR

SKU: 117135

Manufacturer: ROHM Semiconductor

Analog Switch Single SPST 5-Pin SSOP T/R

2320 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Analog Switch
Configuration	Single SPST
Switch Architecture	SPST
Number of Channels per Chip	1
Number of Inputs per Chip	1
Number of Outputs per Chip	1
Chip Enable Signals	Yes
Polarity	Non-Inverting
Maximum Propagation Delay Bus to Bus (ns)	5(Typ)@15V
Maximum Turn-On Time (ns)	80(Typ)@5V
Maximum Turn-Off Time (ns)	100(Typ)@5V
Maximum Frequency (25°C) @ Vcc (MHz)	10(Typ)@5V
Input Signal Type	Single
Output Signal Type	Single
Minimum Single Supply Voltage (V)	3
Typical Single Supply Voltage (V)	15
Maximum Single Supply Voltage (V)	16
Maximum Supply Current (mA)	0.001@5V
Maximum On Resistance (Ohm)	600@5V
Maximum On Resistance Range (Ohm)	400 to 1000
Propagation Delay Test Condition (pF)	50
Power Supply Type	Single
Maximum Power Dissipation (mW)	670
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	SSOP
Pin Count	5
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.1
Package Length	2.9
Package Width	1.6
PCB changed	5
