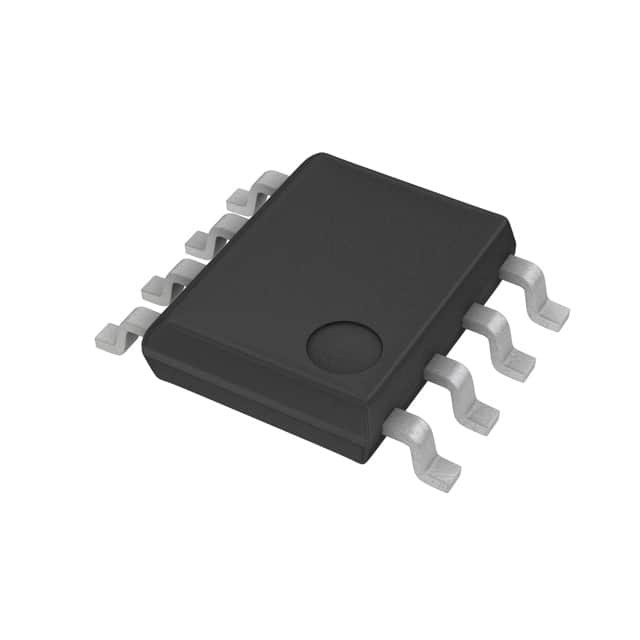

BR24G16FJ-3NE2

SKU: 60726

Manufacturer: ROHM Semiconductor

EEPROM Serial-2Wire 16K-bit 2K x 8 1.8V/2.5V/3.3V/5V 8-Pin SOP-J T/R

3370 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Chip Density (bit)	16K
Organization	2Kx8
Address Bus Width (bit)	11
Programmability	Yes
Data Retention (Year)	40(Min)
Max. Access Time (ns)	900
Maximum Operating Frequency (MHz)	0.4
Interface Type	Serial-2Wire
Operating Supply Voltage-Min (V)	1.6
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	5.5
Programming Voltage (V)	1.6 to 5.5
Operating Current (mA)	2
Operating Temperature-Min	-40
Operating Temperature-Max	85
Hardware Data Protection	Yes
Packing Method	Tape and Reel
Original Package	SOP-J
Pin Count	8
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.38
Package Length	4.9
Package Width	3.9
PCB changed	8
